The fundamental properties of exotic nuclei provide crucial insights into nuclear structure and nucleon-nucleon interactions. Investigating nuclear properties across different mass regions of the nuclear chart helps uncover novel structural phenomena, test theoretical models, and refine our understanding of the nuclear force [1−7]. Laser spectroscopy technique, by measuring hyperfine structure (HFS) and isotope shift in atomic, ionic or even molecular spectra [3, 8, 9], enables precise determination of nuclear spins, magnetic moments, electric quadrupole moments and charge radii in a nuclear-model-independent way. In recent years, laser spectroscopy has emerged as a powerful tool for probing nuclear properties of exotic nuclei and has been widely implemented at numerous radioactive ion beam (RIB) facilities worldwide, providing essential experimental benchmarks for nuclear theory and advancing our understanding of exotic nuclear phenomena [10−12].
Collinear laser spectroscopy (CLS) is one of the most widely used laser spectroscopy techniques [13−16]. By overlapping the lasers and fast ion beam collinearly or anti-collinearly, the doppler broadening effect associated with the energy spread of the ion beam can be largely suppressed, achieving a high resolution of approximately 101-2 MHz [17]. The HFS spectra of unstable nuclei can be measured by the CLS technique using two approaches: laser-induced fluorescence (LIF) [13, 15, 16] and resonance ionization spectroscopy (RIS) [14, 18]. The LIF approach measures the HFS spectra by detecting fluorescence photons emitted from an excited state of the atoms or ions as a function of the probing laser frequency. However, the scattered laser light and thermal noise of the detecting photomultiplier tube result in a high background rate in the measured HFS spectra, limiting the sensitivity of CLS experiment using the LIF approach. Therefore, by additionally employing one or two more lasers to overlap (anti-)collinearly with the atom beams and to ionize them, the RIS approach can measure the HFS spectra with a high resolution and high sensitivity [14, 18].
In order to study nuclear properties and exotic structure of unstable nuclei at radioactive ion beam facilities in China, e.g., the Beijing Rare Isotope Beam Facility (BRIF) [19], a CLS system with LIF detection was first developed [20, 21], which as expected has a limited experimental efficiency. To achieve higher-efficiency measurements, this system was further updated into a collinear resonance ionization spectroscopy system (PLASEN, Precision LAser Spectroscopy for Exotic Nuclei) by implementing the radiofrequency quadrupole (RFQ) cooler-buncher and RIS approach [22− 24], and achieved an overall efficiency of 1:200 with a spectral resolution of ~100 MHz (FWHM) for 85,87Rb isotopes. The system is planned to be installed at BRIF to study the nuclear properties of unstable nuclei in the medium-mass region of the nuclear chart produced from the fission of actinide, in particular the isotopes around Z = 55 and N = 90. This region has long been theoretically predicted to exhibit potential deformation and octupole correlations [25], which however, have not been clearly observed in the ground-state properties—such as masses and half-lives—of neutron-rich Xe (Z = 54), Cs (Z = 55), and Ba (Z = 56) [26, 27]. Therefore, further measurements of charge radii and moments in neutron-rich Cs isotopes using laser spectroscopy will provide more insights into deformation in this mass region.
The isotopes under investigation are 147-150Cs, which are expected to be produced at BRIF with a yield greater than 102 particles per second (pps). Thus, to ensure successful laser spectroscopy measurements of unstable Cs isotopes, optimal resonance ionization schemes and experimental conditions must be predetermined.
In this work, we tested several three-step laser resonance ionization schemes for cesium atoms under relatively optimized experimental conditions of 80% neutralization efficiency and 80% overall ion beam transmission efficiency using the PLASEN system. We evaluated the ionization efficiency and spectral resolution of these candidate schemes and identified the most efficient one that achieved an overall measurement efficiency of 1:400 with a spectral resolution of about 100 MHz. With the HFS spectrum of 133Cs measured under this condition, the extracted HFS parameters showed excellent agreement with the literature values. This work establishes a solid foundation for the forthcoming online measurements of neutron-rich cesium isotopes at BRIF.
-
The experimental setup PLASEN used for this measurement is illustrated in Fig. 1(a). More details on the PLASEN system can be found in ref. [24]. The whole experiment begins with the production of a continuous 133Cs ion beam from a surface ion source. These ions were extracted and accelerated to 30 keV before being injected into the RFQ cooler and buncher [23, 28]. With the RFQ, the ion beam was cooled and accumulated for 10 ms before being released as short bunches with a temporal width of approximately 2 µs and at 100 Hz repetition rate. The ion bunches were then re-accelerated to 30 keV. The cooling process inside RFQ reduced the potential energy spread of the ion beam and improved the ion beam profile by reducing the beam emittance [23]. To avoid any space charge effects, the total ion beam current injected into the RFQ is limited to below 1 pA using a modulated ion beam gate. During this Cs test experiment, the transmission efficiency of the RFQ is about 60% verified using the Faraday cups before and after the RFQ [24].

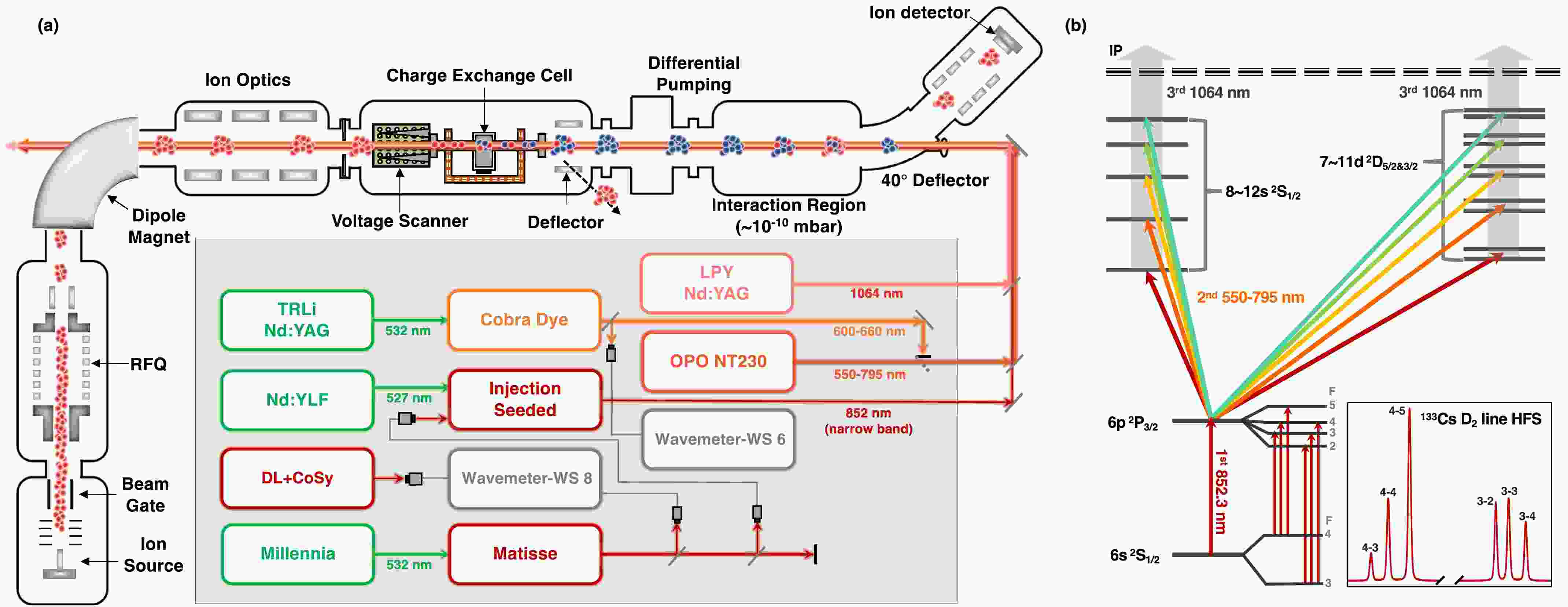

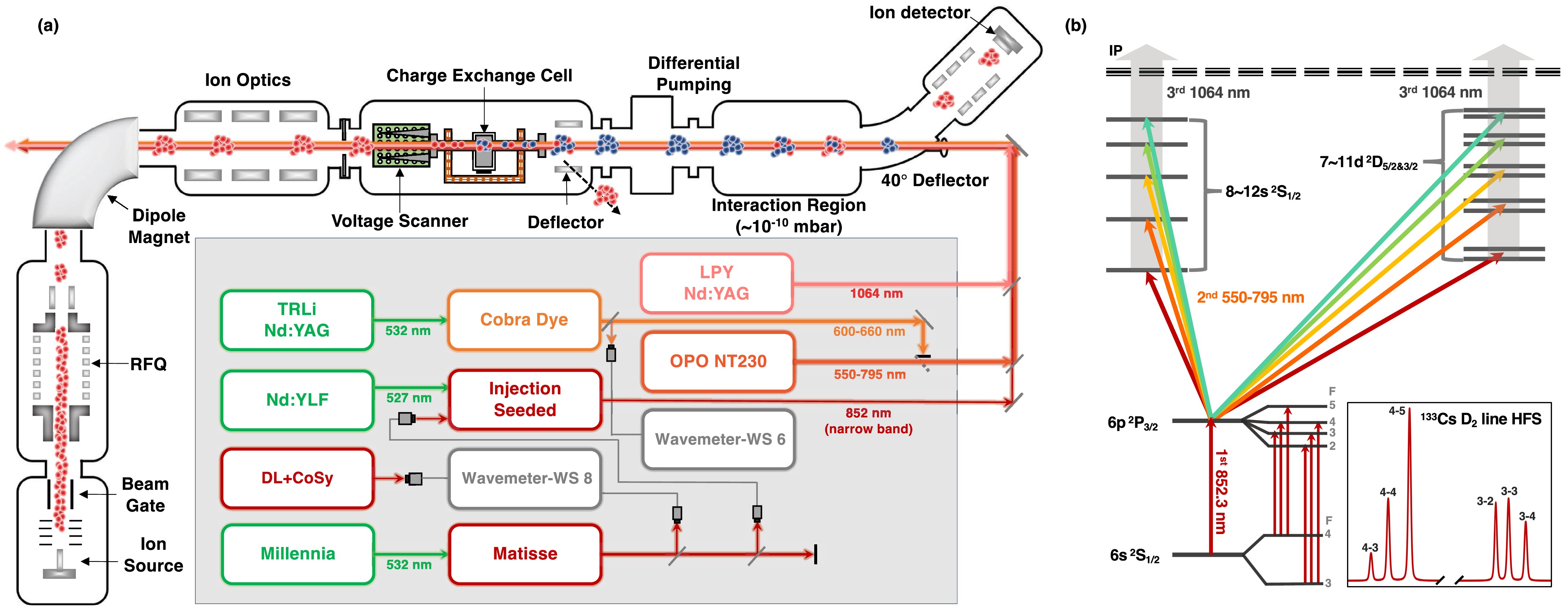

Figure 1. (color online) (a) A schematic view of the entire experimental setup and the laser systems used for this work. (b) Resonance ionization schemes of Cs I being tested in this work.
The bunched Cs ion beam with a higher quality beam profile was subsequently deflected into the collinear beamline by a dipole magnet. By using the ion optics consisting of electrostatic quadrupole triplet (QT) lenses, x − y correction plates and deflector plates, the bunched Cs beam was further optimized and delivered into the end of the PLASEN setup. Using the bunched Cs ion beam, the overall transmission efficiency of the PLASEN setup was over 80% verified using the Faraday cups after the RFQ and at the end of the PLASEN [24]. Within the collinear beamline, the ion beam underwent neutralization with sodium vapor in the charge exchange cell (CEC). Any residual unneutralized ions were removed by the deflector plates positioned after the CEC. The general neutralization efficiency was measured to be 80% for Cs ions. The neutralized Cs atoms were delivered into the interaction region (IR). Here, the Cs atomic beam was spatially overlapped and synchronized in time with three pulsed laser beams (see sec. 3 for details), and at the same time resonantly ionized. To suppress any possible collisional ionization, IR was maintained at an ultra-high vacuum of 10−10 mbar, achieved via a differential pumping system that isolates the IR from the 10−8 $ mbar environment inside the CEC [22].
Following resonance ionization, the ions were guided toward the MagneTOF ion detector through the 40° electrostatic bender plates and a set of QT lenses. By scanning the frequency of the probing laser (the first step laser as detailed below in sec. 3), the HFS spectra were obtained by measuring the detected ion rates as a function of the laser frequency [29].
-
The study of the nuclear properties of neutron-rich Cs isotopes is already planned at BRIF facility. In order to obtain an optimal experimental condition for the online experiment, testing all the potential resonance ionization schemes in advance is indispensable. The potential candidate schemes are shown in Fig. 1(b). Here, we select the D2 (
$ 5p^6 6s\ ^2S_{1/2} \rightarrow 5p^6 6p\ ^2P^\circ_{3/2} $ , 851.2 nm) transition as the first resonance step for the HFS spectrum measurement of 133Cs. Although the electric quadrupole HFS constant$ B_{\rm{u}} $ of the D2 transition of 133Cs is relatively low, the$ B_{\rm{u}} $ values for unstable cesium isotopes are large enough to be extracted from the HFS spectra measured with CLS according to previous laser spectroscopy studies [30, 31]. Therefore, using the D2 transition allows us to simultaneously extract the nuclear spins, magnetic moments, quadrupole moments and charge radii of Cs isotopes.All the involved laser system used for the resonance ionization schemes shown in Fig. 1(b), are presented in Fig. 1(a). As the D2 line is used for the HFS measurement, the laser used for this
$ 5p^6 6s\ ^2S_{1/2} \rightarrow 5p^6 6p\ ^2P^\circ_{3/2} $ step needs to be narrow-band to resolve the HFS. Here, we employed an injection-seeded laser with a linewidth less than 20 MHz at a 100 Hz repetition rate [32]. The system was seeded by a continuous-wave narrow-band Ti:Sa laser and pumped by a 527 nm pulsed Nd:YLF laser. A high-precision wavemeter was used to ensure long-term frequency stability. This wavemeter was continuously calibrated in real time by a tunable diode laser, whose frequency was locked to a HFS transition of 87Rb in a temperature-controlled vapor cell. In order to obtain optimal resonance ionization efficiency, multiple transitions from$ 5p^6 6p\ ^2P^\circ_{3/2} $ to$ 5p^6 nd\ ^2D_{3/2,5/2} $ ($ n = 7-11 $ ) or$ 5p^6 ns\ ^2S_{1/2} $ ($ n = 8-12 $ ) were tested for the second excitation step, covering a laser wavelength of 550–795 nm. A pulsed dye laser pumped by a 532 nm Nd:YAG laser, capable of delivering 100 Hz pulsed laser beams with a power of 20 mJ, was used for this step. Additionally, an OPO laser (NT230-100, EKSPLA) was adopted for the second resonance step thanks to its broad wavelength tuning range (192–2600 nm) and relatively large linewidth (3 cm−1). The 1064 nm for the third non-resonant ionization step was produced by a Nd:YAG laser, which provides a high laser power up to 100 mJ that is essential for efficient ionization while minimizing laser induced background ion counts.In this test, the high-power pulsed dye laser at 621 nm matching the
$ 5p^6 6p\ ^2P^\circ_{3/2}\rightarrow5p^6 8d\ ^2D_{3/2} $ transition is initially used for the second-step excitation to find the RIS signal. Based on this RIS signal, we then optimized the laser power, laser path, ion beam transportation, and timing of the laser pulses to maximize efficiency. Under this optimal experimental conditions, we switched to the OPO laser for the second step and compared the resonance ionization efficiencies at the maximum available power by scanning the OPO wavelength from 550 nm to 795 nm covering all the second step transitions. The count rates obtained with different second steps were recorded and compared under two different conditions (full power and lower power for the first step), as shown in Table 1 and Fig. 2. In the full power case, the ionization efficiency is maximized, but at the cost of poor spectral resolution (1 ~2 GHz) due to the possible power broadening. The results shown in Table 1 and Fig. 2 indicate that the$ 5p^6 7d\ ^2D_{5/2} $ state for the second step has the highest efficiency. However, in order to extract the nuclear properties of spins, magnetic moments, quadrupole moments, and charge radii of Cs isotopes with high accuracy, an HFS spectral resolution of ~100 MHz or even lower is prerequisite. Therefore, to obtain a compromised condition for both high resolution and high efficiency, the first-step laser power was reduced in order to obtain a HFS spectrum with a resolution of ~100 MHz. Under this condition, any of the transitions to the “$ nd\ D $ ” states can be used for efficient resonance ionization, but the n = 8 ($ 5p^6 8d\ ^2D_{5/2} $ ) state is slightly better than others. It is worth noting that the achieved efficiency under the full-power condition is about three times higher than that under the lower-power condition. Although the high-power measurements are inadequate for determining the nuclear spins and quadrupole moments, they still allow us to study more exotic isotopes with lower production yields, enabling the extraction of charge radii and magnetic moments. Nevertheless, for isotopes with higher production yields, we will primarily perform HFS measurements under the lower-power condition to determine the HFS constants with high accuracy.Transition Wavenumber
(cm−1)kCounts (60 s)
(full power)aRelative Counts
(full power)akCounts (60 s)
(lower power)bRelative Counts
(lower power)b$ 6s\ ^2S_{3/2}\rightarrow 6p\ ^2P^\circ_{3/2} $ 852.35 − − − − $ 6p\ ^2P^\circ_{3/2}\rightarrow 8s\ ^2S_{1/2} $ 794.94 14.34(12) 0.104 5.34(7) 0.133 $ 6p\ ^2P^\circ_{3/2}\rightarrow 7d\ ^2D_{3/2} $ 698.84 89.40(30) 0.650 32.82(18) 0.815 $ 6p\ ^2P^\circ_{3/2}\rightarrow 7d\ ^2D_{5/2} $ 697.82 137.52(37) 1.000 39.48(20) 0.981 $ 6p\ ^2P^\circ_{3/2}\rightarrow 9s\ ^2S_{1/2} $ 659.11 11.22(11) 0.082 4.20(6) 0.104 $ 6p\ ^2P^\circ_{3/2}\rightarrow 8d\ ^2D_{3/2} $ 622.19 97.80(31) 0.711 36.72(19) 0.912 $ 6p\ ^2P^\circ_{3/2}\rightarrow 8d\ ^2D_{5/2} $ 621.74 134.16(37) 0.976 40.26(20) 1.000 $ 6p\ ^2P^\circ_{3/2}\rightarrow 10s\ ^2S_{1/2} $ 603.83 6.42(8) 0.047 2.94(5) 0.073 $ {6p\ ^2P^\circ_{3/2}\rightarrow 9d\ ^2D_{3/2,\,5/2}}^{\rm c} $ 585.15 91.98(30) 0.669 39.60(20) 0.984 $ 6p\ ^2P^\circ_{3/2}\rightarrow 11s\ ^2S_{1/2} $ 574.97 4.02(6) 0.029 2.40(5) 0.060 ${ 6p\ ^2P^\circ_{3/2}\rightarrow 10d\ ^2D_{3/2,\,5/2} }^{\rm c}$ 564.06 76.08(28) 0.553 35.64(19) 0.885 $ 6p\ ^2P^\circ_{3/2}\rightarrow 12s\ ^2S_{1/2} $ 557.76 2.34(5) 0.017 1.80(4) 0.045 ${6p\ ^2P^\circ_{3/2}\rightarrow 11d\ ^2D_{3/2,\,5/2}} ^{\rm c}$ 550.72 74.22(27) 0.540 30.18(17) 0.750 Ionization 1064 − − − − a Relative counts obtained with the first-step laser at full power. b Relative counts obtained with the first-step laser at a reduced power to obtain a spectral resolution of ~100 MHz. c The OPO laser is unable to resolve the two close atomic levels. Table 1. Summary of the test results and information for second-step in the resonance ionization schemes listed in Fig. 1(b)

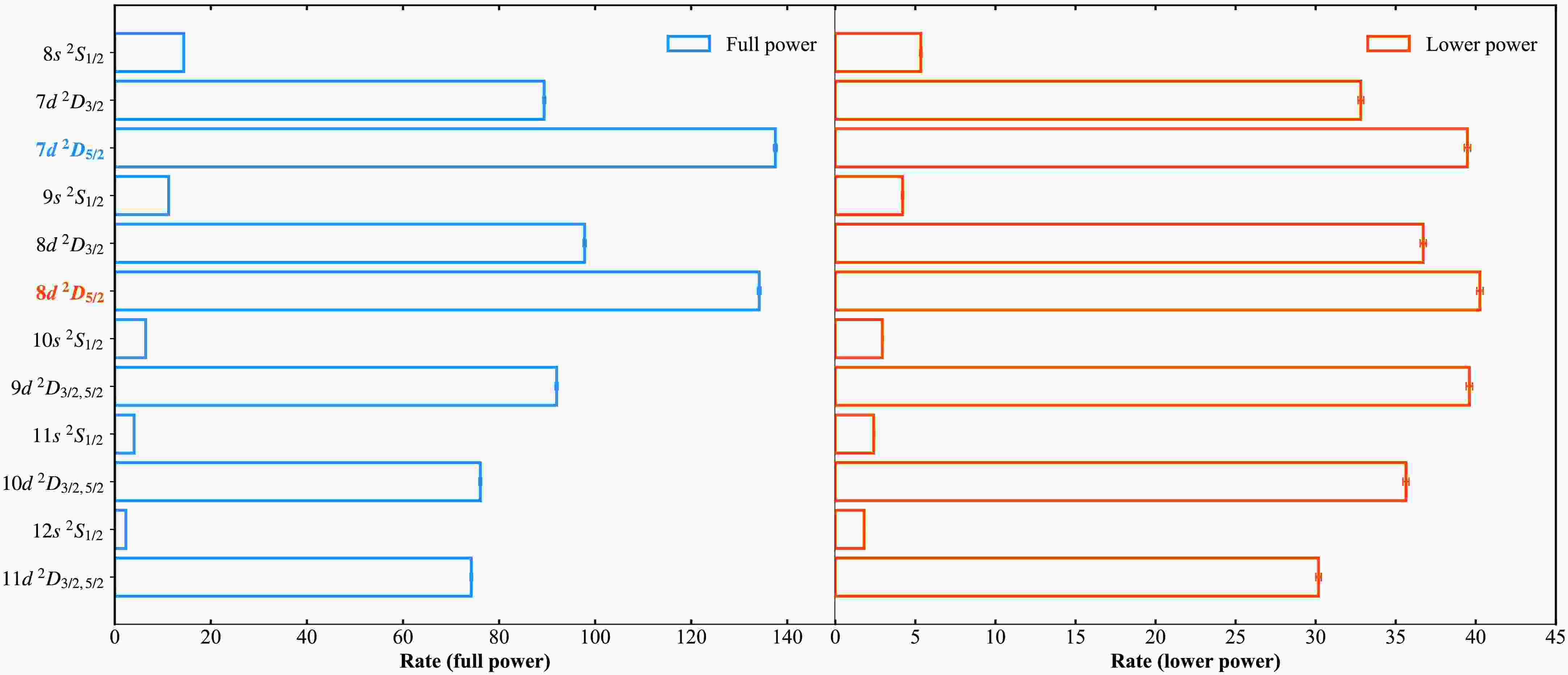

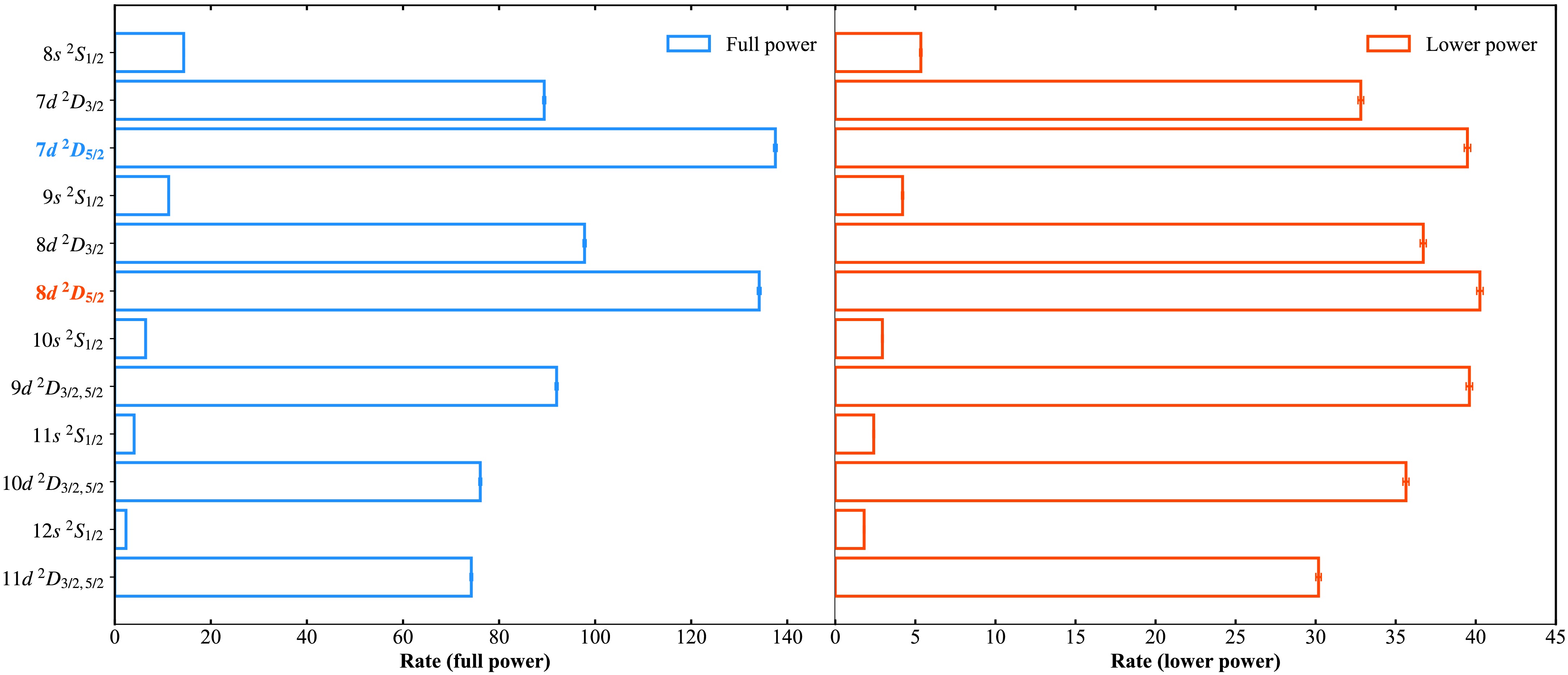

Figure 2. (color online) RIS count rate for different upper state of the second-step transition, obtained on the condition of the first-step laser at full power (left panel: blue) and at a reduced power (right panel: red). The states used for achieving the highest efficiency are highlighted in bold and with the corresponding color.
Based on the results, we identified that the most suitable resonance ionization scheme for high resolution and high efficiency HFS spectrum measurement for Cs isotopes is

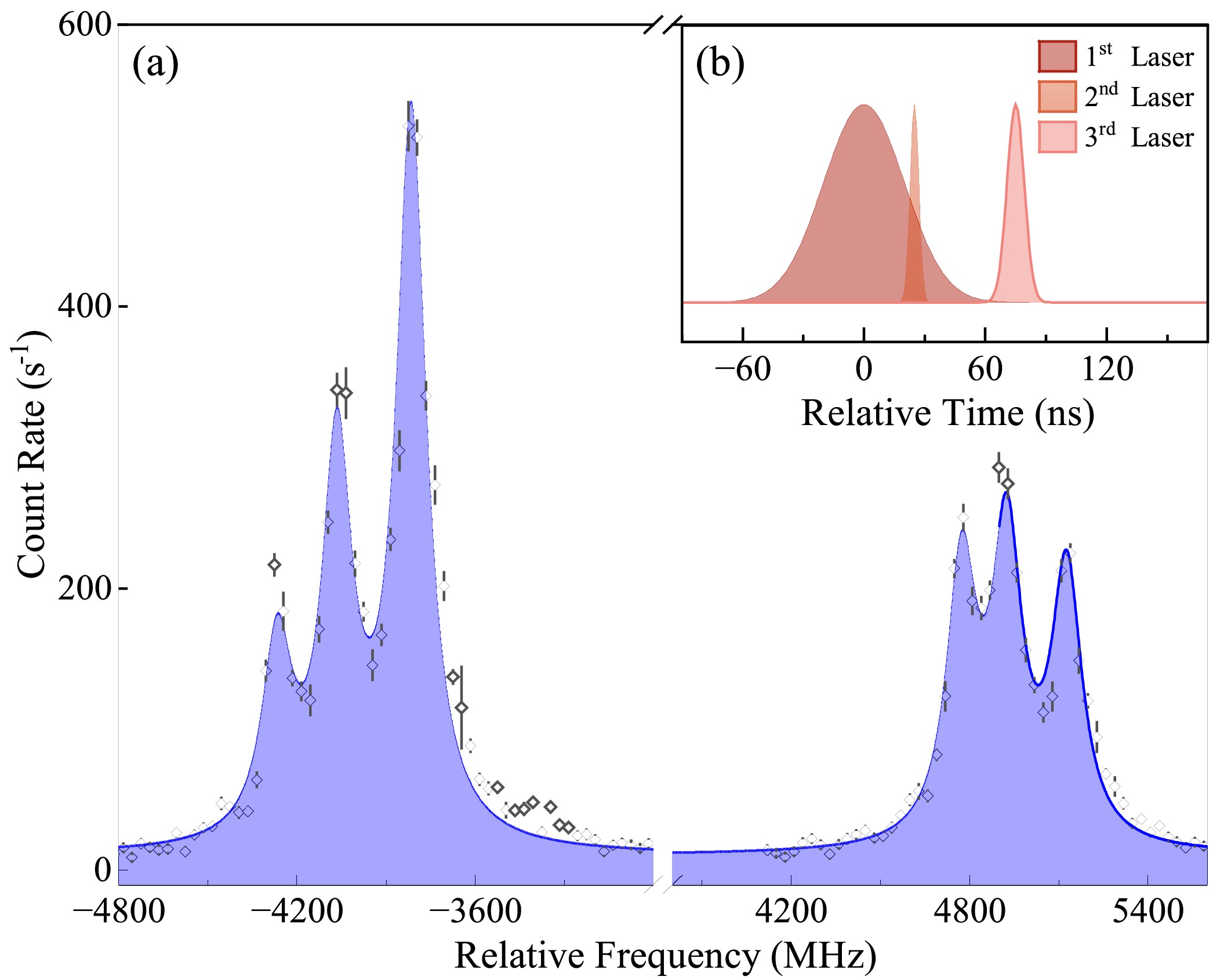

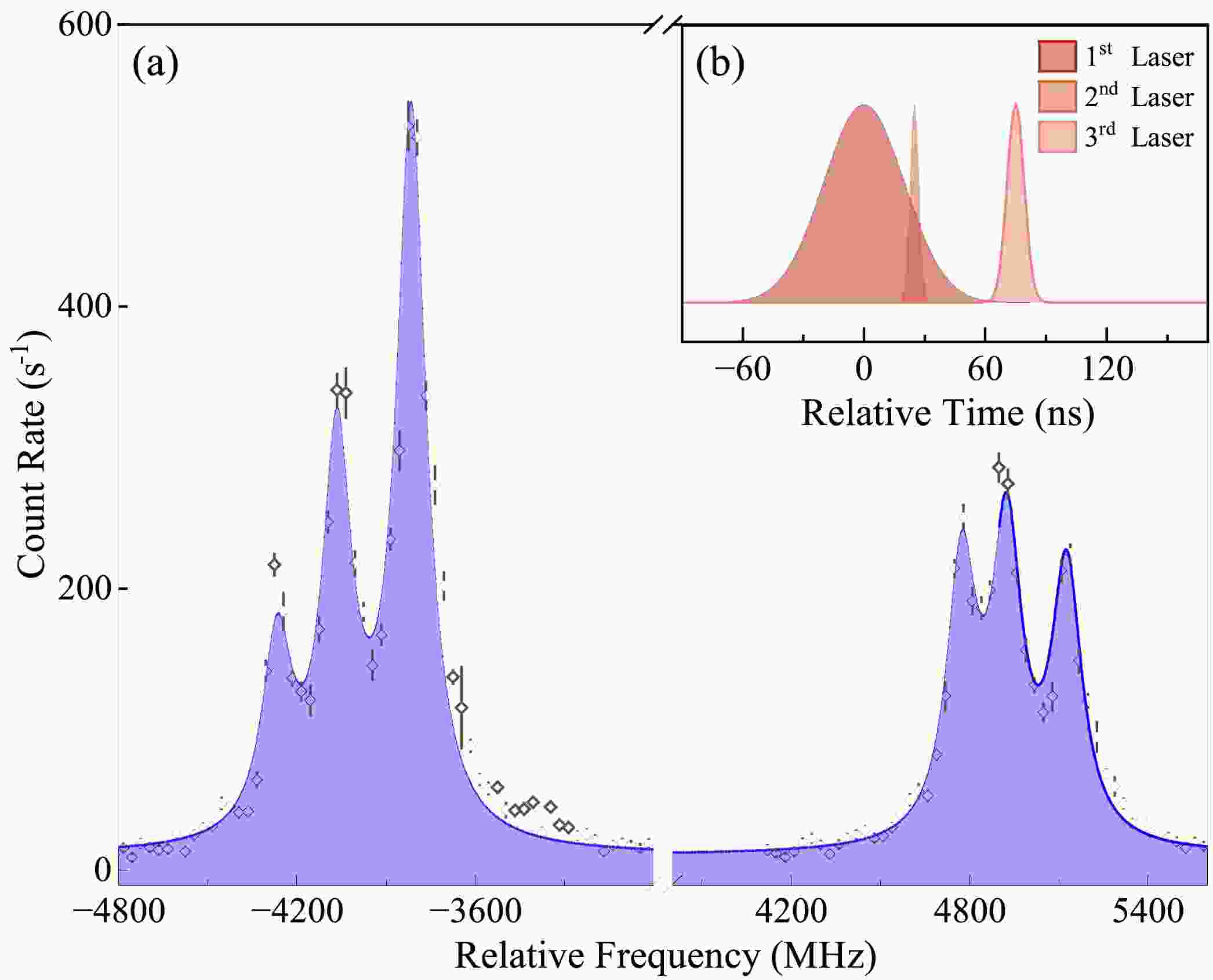

$ 5p^6 6s\ ^2S_{1/2}\rightarrow 5p^6 6p\ ^2P^\circ_{3/2}\rightarrow5p^6 8d\ ^2D_{5/2}\rightarrow \text{IP} $ . Finally, by using this identified scheme, we optimize the experimental conditions once more, including optimization of the line shape by varying the laser power, the laser and ion beam overlapping, and the relative delaying of the laser pulses. Finally, we measured the HFS spectra of the D2 line for 133Cs shown in Fig. 3(a) with an efficiency of 1:400 and a spectral resolution of ~100 MHz, which is taken with the relative delaying of the laser pulses shown in Fig. 3(b). The efficiency was evaluated from the detected resonance ionization counts and the ion beam intensity after the RFQ, which includes the efficiencies of ion beam transmission, neutralization, resonance ionization and detection. Based on this efficiency, it can be estimated that for an isotope with a production of 100 pps along with an isobar contamination of 104 pps, a full HFS spectrum can be measured within a reasonable experimental time of approximately 16 hours.[24]Figure 3. (color online) (a) HFS spectrum of 133Cs obtained with an efficiency of 1:400 and a resolution of ~100 MHz (FWHM). (b) The optimized timing sequences of the three-step laser pulses. See text for further details.
The HFS spectrum of 133Cs shown in Fig. 3(a) was analyzed using a Voigt profile and a
$ \chi^2 $ -minimization approach implemented in the SATLAS2 package [34]. The extracted magnetic dipole and electric quadrupole HFS parameters A and B are in excellent agreement with the literature values [33], as shown in Table 2.Al Au Bu Exp. 2297.7(8) 50.45(36) −2.6(21) Ref. [30]a 2298.3(2) 50.15(8) −1.35(80) Ref. [33]b 2298.1579425c 50.28827(23) −0.4934(17) a The reference values are measured using collinear laser spectroscopy [30]. b The reference values are taken from Ref. [33], which summarizes the most precise atomic physics measurements for stable 133Cs. c Exact by definition, as the SI second is defined by the hyperfine splitting of the 6S1/2 state of 133Cs.. Table 2. Hyperfine structure constants of 133Cs measured in this work and taken from literature.
This test experiment has achieved high-resolution and high-sensitivity HFS spectrum measurements of 133Cs, and sets an important foundation for the upcoming online experiment for the study of neutron-rich 147-150Cs isotopes at BRIF.
-
In this work, a systematic investigation of the three-step laser resonance ionization schemes of cesium was carried out using PLASEN system. A three step scheme
$ 5p^6 6s\ ^2S_{1/2}\rightarrow 5p^6 6p\ ^2P^\circ_{3/2} $ $ \rightarrow5p^6 8d\ ^2D_{5/2}\rightarrow \text{IP} $ was identified as the most suitable one for high-resolution and high-efficiency resonance ionization laser spectroscopy measurement. Using this scheme, we further optimized experimental condition, resulting in an HFS spectrum for 133Cs with an overall measurement efficiency of 1:400 while maintaining a spectral resolution of about 100 MHz (FWHM). The extracted HFS parameters are in excellent agreement with literature values. This work establishes a solid experimental foundation for studying neutron-rich cesium isotopes beyond N = 90 at BRIF.As ISOL target development progresses at BRIF [19] and with the construction of next-generation RIB facilities in China [35], a broader range of exotic nuclei will be accessible in the near future. This work additionally demonstrates the feasibility of the PLASEN setup for systematic RIS scheme development of stable isotopes and for obtaining an optimal measurement condition prior to performing online experiment on their exotic isotopes at RIB facilities.
