According to Rastall's proposal, the energy-momentum conservation law is revised as [20]
$ \nabla_{\alpha}T^{\alpha\beta} = \lambda R^{,\beta}, $
(1) and the field equations of RG are formulated as
$ G_{\alpha\beta}+k\lambda g_{\alpha\beta}R = k T_{\alpha\beta}, $
(2) where
$ G_{\alpha\beta} $ ,$ T_{\alpha\beta} $ , and k are the Einstein tensor, energy-momentum tensor, and Rastall gravitational coupling constant, respectively. In the last few years, RG has begun a new era in gravitational physics, and many works on various BH solutions and related thermodynamics have been investigated in [100−103]. In the framework of RG, we consider the static spherically symmetric BH metric with the electromagnetic field in the cosmological constant background given as [100]$ {\rm d}s^{2} = -f(r){\rm d}t^{2}+\frac{{\rm d}r^{2}}{f(r)}+r^{2}{\rm d}\Omega^{2}, $
(3) where
$ f(r) = 1-\frac{2M}{r}+\frac{Q^{2}}{r^{2}}-\frac{\Lambda}{3-12\lambda}r^{2}, $
(4) where
$ f(r) $ is the metric function, which is determined in terms of mass M and charge Q, and${\rm d}\Omega^{2} = {\rm d}\theta^{2}+\sin^{2}\theta {\rm d}\varphi^{2}$ . The cosmological constant Λ is related to the AdS radius l, which is defined as$ \Lambda = -\dfrac{3}{l^{2}} $ . For simplicity, hereafter, we set$ l = 1 $ . Further, to analyze the holographic images of the charged AdS BH solution in RG within the framework of AdS/CFT correspondence, we first define the holographic setup of the dual BH images from the response function of the boundary quantum field theory with external sources. Closely following [90, 91], for the source$ {\cal{J}}_{{\cal{O}}} $ , we employ a time-periodic localized Gaussian source with frequency ω, on one side of the AdS boundary and scalar waves generated by the source can propagate in the bulk. When the scalar wave propagates inside the BH space-time and reaches the other side of AdS the boundary, the corresponding response function is generated, such as$ \langle O\rangle $ , which gives information about the bulk structure of the BH space-time. A schematic diagram of this setup is shown in Fig. 1.By using a special optical system, we can convert the extracted response function

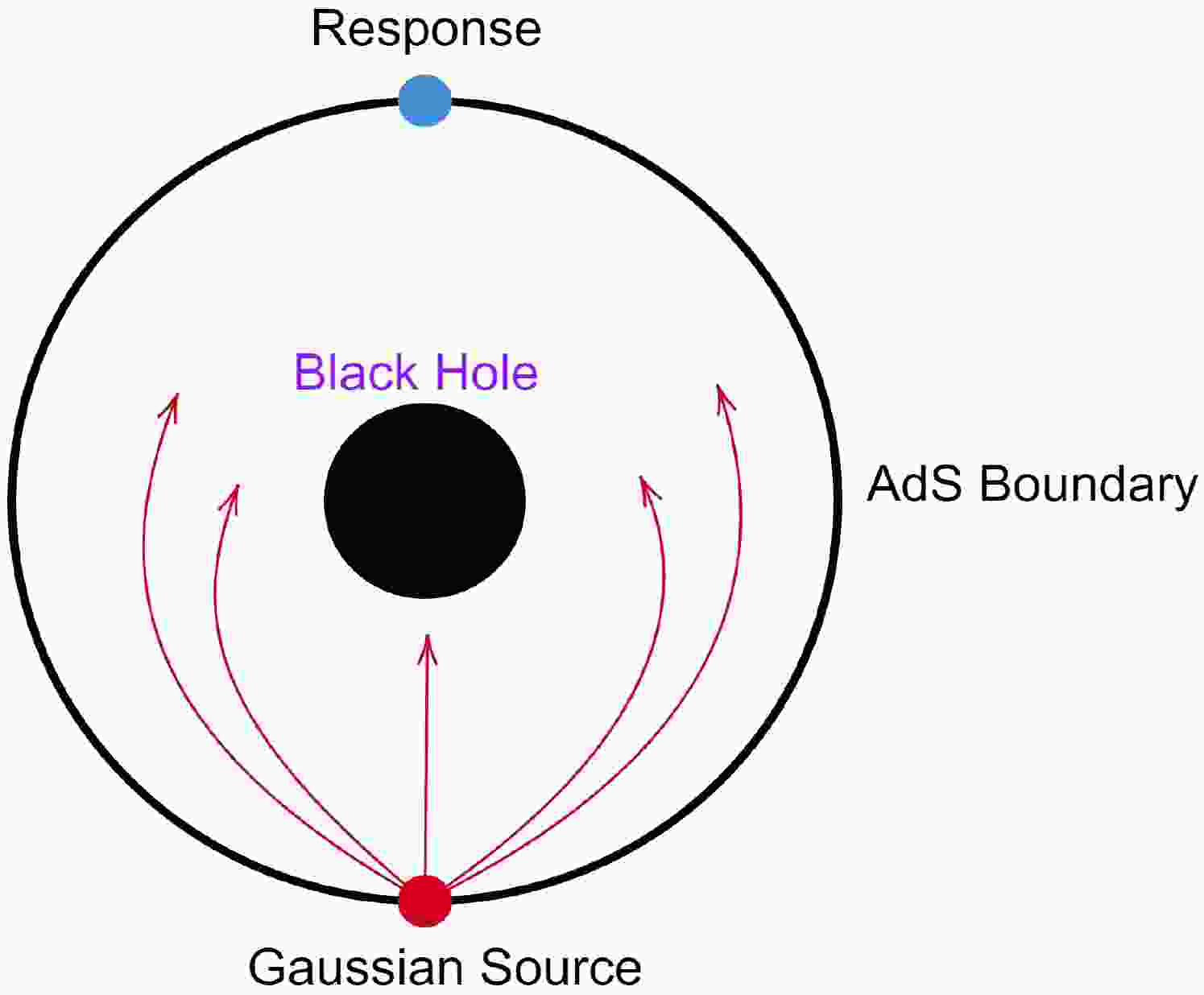

$ \langle O\rangle $ into the holographic image, which can be seen on a virtual screen. The ($ 2+1 $ )-dimensional boundary CFT on a$ 2 $ -sphere$ S^{2} $ is naturally dual to a BH in the AdS4 space-time or the massless scalar field in space-time. To achieve the goal, we use a new definition$ v = 1/r $ , which gives$ f(r) = v^{-2}f(v) $ . From this perspective, we revised the metric (3) as follows:$ {\rm d}s^{2} = \frac{1}{v^{2}}\left[-f(v){\rm d}t^{2}+\frac{{\rm d}v^{2}}{f(v)}+{\rm d}\Omega^{2}\right]. $
(5) The value of
$ v = 0 $ corresponds to the AdS boundary, where the dual quantum system lies. The Hawking temperature T of the BH is related to its surface gravity, which is calculated as [100]$ T = \frac{3+v^{2}_{h}+4\lambda v^{2}_{h}-Q^{2}v^{4}_{h}+4\lambda Q^{2}v^{4}_{h}}{4\pi v_{h}(1-4\lambda)}, $
(6) where

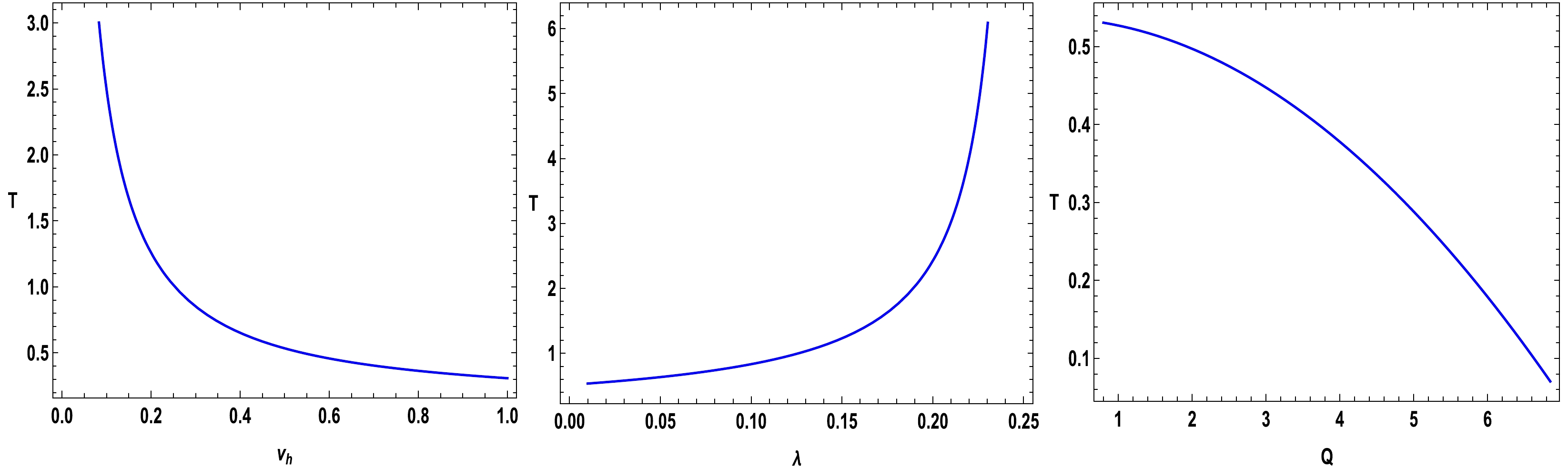

$ v_{h} $ is the inverse of the horizon radius of the BH.The behaviors of temperature T versus the inverse of the horizon
$ v_{h} $ , parameter λ, and charge Q are shown in the left, middle, and right panels of Fig. 2, respectively. From Fig. 2 (left panel), we see that when$Q = 0.5, \lambda = 0.01$ , the temperature T has the maximum value at point ($v_{h} = 0.0822522,\; T = 3.02991$ ) and then gradually decreases with increasing inverse of the horizon$ v_{h} $ . The middle panel of Fig. 2 shows that when$ Q = v_{h} = 0.5 $ , the temperature T has the lowest value at point ($\lambda = 0.01, T = 0.534661$ ) and then sharply increases as the strength of the Rastall parameter λ increases. The right panel of Fig. 2 shows that when$ v_{h} = 0.5,\; \lambda = 0.01 $ , the temperature T has the maximum value at point ($Q = 0.8, T = 0.530782$ ) and then sharply decreases with increasing charge Q. This feature may be used as a method to distinguish the charged Rastall AdS BH solution from that of previous studies [92−99] and may affect the following response function, which is derived through the holographic setup. Now, we consider the complex scalar field as a probe field in the charged Rastall AdS background. In this regard, the corresponding dynamics are described by the following Klein-Gordon equation [104]:Figure 2. (color online) Relation between temperature T versus the inverse of the horizon
$v_{h}$ (with$Q=0.5,~\lambda=0.01$ ), parameter λ (with$Q=v_{h}=0.5$ ), and charge Q (with$v_{h}=0.5,~\lambda=0.01$ ), shown in the left, middle and right panels, respectively.$ D^{\nu}D_{\nu}\Phi-{\cal{M}}^{2}\Phi = 0, $
(7) where
$D_{\nu}\equiv\nabla_{\nu}-{\rm i}eA_{\nu}$ is the covariant derivative operator, A is associated with electromagnetic four-potential, Φ interprets the complex scalar field with e as its electric charge, and$ {\cal{M}} $ represents the mass of the scalar field. Further, to solve this numerically in a more convenient manner, we prefer to define the ingoing Eddington coordinate as [92]$ u = t+v_{\star} = t-\int\frac{1}{f(v)}{\rm d}v, $
(8) and then, the non-vanishing bulk background fields are transformed into the following form:
$ {\rm d}s^{2} = \frac{1}{v^{2}}[-f(v){\rm d}u^{2}-2{\rm d}v{\rm d}u+{\rm d}\Omega^{2}], $
(9) $ \;A_{\nu} = -A(v)({\rm d}u)_{\nu}, $
(10) where
$ A(v) = Q(v-v_{h}) $ . In this case, the gauge transformation is also applied to the electromagnetic four-potential. By holography,$ \mu = Qv_{h} $ is denoted as the chemical potential of the boundary system. Here, we take$ {\cal{M}}^{2} = -2 $ for definiteness. With$ \Phi = v\phi $ , the asymptotic behavior of the scalar field close to the AdS boundary can be expressed as$ \phi(u,v,\theta,\varphi) = {\cal{J}}_{O}(u,\theta,\varphi)+\langle O\rangle v+{\cal{O}}(v^{2}). $
(11) Based on the holographic dictionary,
$ {\cal{J}}_{O}(u,\theta,\varphi) $ denotes the external source for the boundary field theory, and the corresponding expectation value of the dual operator, the so-called response function, is defined as [105]$ \langle O\rangle_{{\cal{J}}_{O}} = \langle O\rangle-(\partial_{u}-{\rm i}e\mu){\cal{J}}_{O}, $
(12) where
$ \langle O\rangle $ corresponds to the expectation value of the dual operator when the source is turned off. As defined in [90, 91], we choose an axisymmetric and monochromatic oscillating Gaussian wave packet source and fix it at the south pole of the boundary$ {S}^{2} $ , i.e.,$ \theta_{0} = \pi $ as the source. Thus, we have$ {\cal{J}}_{O}(u,\theta) = {\rm e}^{-{\rm i}\omega u}\frac{1}{2\pi\eta^{2}}\exp\big[\frac{-(\pi-\theta)^{2}}{2\eta^{2}}\big] = {\rm e}^{-{\rm i}\omega u}\sum\limits_{n = 0}^{\infty}c_{n0}Y_{n0}(\theta), $
(13) where η is the width of Gaussian wave source and
$ Y_{n0} $ is the spherical harmonics function. We ignore the Gaussian tail safely due to its smallest value; hence, we only consider the case$ \eta<<\pi $ . Further, the coefficients of the spherical harmonics$ Y_{n0} $ can be written as [91]$ c_{n0} = (-1)^{n}\bigg(\frac{(n+1/2)}{2\pi}\bigg)^{\frac{1}{2}}\exp\bigg[-\frac{1}{2}(n+1/2)^{2}\eta^{2}\bigg]. $
(14) Based on Eq. (13), the corresponding bulk solution takes the following form:
$ \phi(u,v,\theta) = {\rm e}^{-{\rm i}\omega u}\sum\limits_{n = 0}^{\infty}c_{n0}V_{n}(v)Y_{n0}(\theta), $
(15) where
$ V_{n} $ satisfies the equation of motion as$ \begin{aligned}[b] &v^{2}f(v)V''_{n}+v^{2}[f'(v)+2{\rm i}(\omega-eA)]V'_{n}\\ &+[(2-2f(v))+vf'(v)-v^{2}({\rm i}eA'+n(n+1))]V_{n} \\ &= 0, \end{aligned}$
(16) and the asymptotic behavior of
$ V_{n} $ can be expressed in the following form:$ V_{n} = 1+{\langle O\rangle}_{n}v+{\cal{O}}(v^{2}). $
(17) Similarly, the resulting response
$ {\langle O\rangle}_{{\cal{J}}_{O}} $ can be defined as$ {\langle O\rangle}_{{\cal{J}}_{O}} = {\rm e}^{-{\rm i}\omega u}\sum\limits_{n = 0}^{\infty}c_{n0}{\langle O\rangle}_{{\cal{J}}_{O}n}Y_{n0}(\theta). $
(18) Then, we have
$ {\langle O\rangle}_{{\cal{J}}_{O}n} = {\langle O\rangle}_{n}+{\rm i}\hat{\omega}, $
(19) where
$ \hat{\omega} = \omega+e\mu $ . Now, our main purpose is to solve the radial Eq. (16) with a boundary condition such as$ V_{n}(0) = 1 $ at the AdS boundary and the horizon boundary condition on the BH event horizon. From this perspective, we obtain the efficient numerical solution of Eq. (16) through the pseudo-spectral method [92], derive the corresponding numerical solution for$ V_{n} $ , and extract$ {\langle O\rangle}_{n} $ . Then, the total response function$ {\langle O\rangle} $ can be found with the help of extracted$ {\langle O\rangle}_{n} $ and through Eq. (18). Here, we choose some proper values of the considered BH space-time and lens parameters as examples to clearly show that the optical appearance arises from the diffraction of the scalar field of the BH, which can be seen in Figs. 3−5. The amplitude of the total response function is plotted for different values of λ with$Q = v_{h} = 0.5, \;\omega = 80, e = 1$ , and for different values of ω with$\lambda = 0.01,\; Q = v_{h} = 0.5, e = 1$ , as shown in the left and right panels of Fig. 3, respectively. Clearly, the left panel of Fig. 3 shows that the amplitude is maximum when λ has smaller values and then decreases with larger values of λ. Meanwhile, the right panel of Fig. 3 shows that the period of the scalar wave is maximum when$ \omega = 30 $ , and it gradually decreases with increasing values of ω. The left panel of Fig. 4 illustrates the amplitude of the total response function for different values of electric charge e with$\lambda = 0.01, Q = v_{h} = 0.5,\; \omega = 80$ . Similarly, the right panel of Fig. 4 depicts the amplitude of the total response function for different values of μ with$\lambda = 0.01,\; v_{h} = 0.5,\; \omega = 80, e = 1$ , where$Q = 0.1,\; 0.5$ , and$ 0.9 $ corresponds to$\mu = $ 1/5, 1, and$ 9/5 $ , respectively. This figure shows that the absolute amplitude of the total response function increases when both e and μ have larger values. Figure 5 also depicts the behavior of the amplitude by varying the temperature T of the boundary system for$\lambda = 0.01,\; Q = 0.5, \omega = 80,\; e = 1$ , where$v_{h} = 0.4, \; 0.5$ , and$ 0.6 $ corresponds to$T = 0.652,\; 0.535$ , and$ 0.458 $ , respectively. From this figure, one can see that the amplitude of the total response function significantly changes with temperature T; for instance, when$ T = 0.458 $ , the amplitude reaches a peak position and moves down at$ T = 0.535 $ and$ 0.652 $ nicely (see Fig. 5). This implies that the amplitude of the total response function increases with decreasing values of T. All these results imply that the amplitude of the total response function closely depends on the Gaussian source and space-time geometry. In the next section, we transform this response function as the observed images on the screen, which may be useful to reflect the distinct features of the space-time geometry.Figure 3. (color online) Absolute amplitude of total response function for different values of λ with

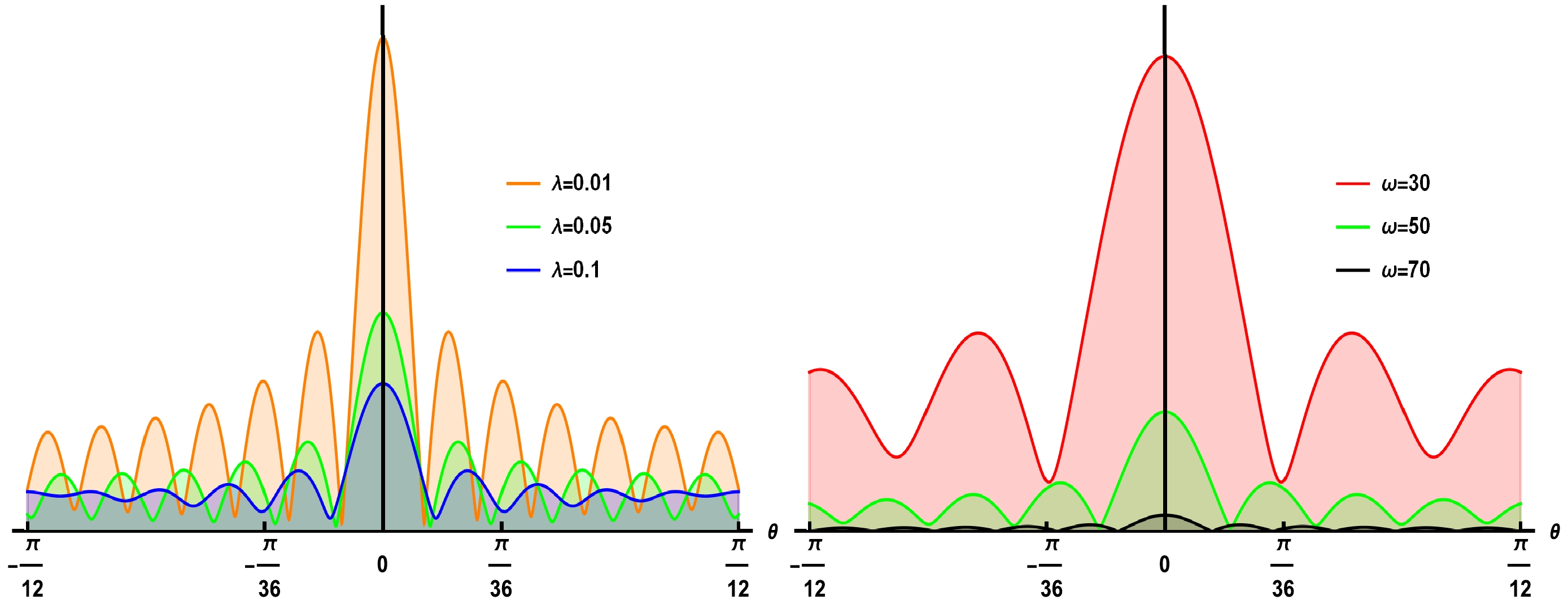

$Q=v_{h}=0.5,\; \omega=80,\; e=1$ (left panel) and for different values of ω with$\lambda=0.01,\; Q=v_{h}=0.5,\; e=1$ (right panel).Figure 5. (color online) Absolute amplitude of total response function for different values of T with

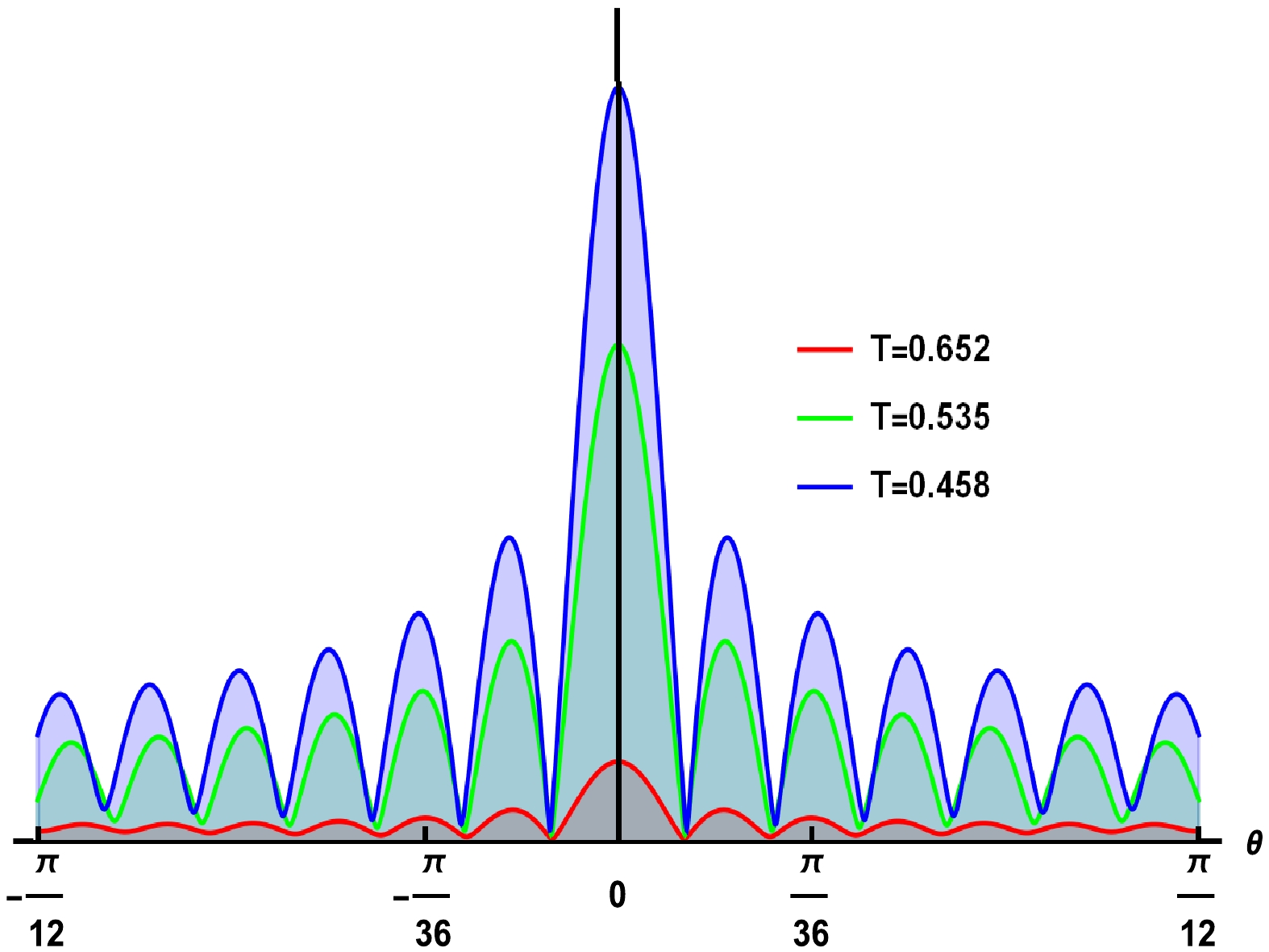

$\lambda=0.01,\; Q=0.5, \; \omega=80, $ $ e=1$ . From top to bottom, the values of T correspond to$v_{h}=0.4,\; 0.5,\; 0.6$ , respectively.Figure 4. (color online) Absolute amplitude of the total response function for different values of e for

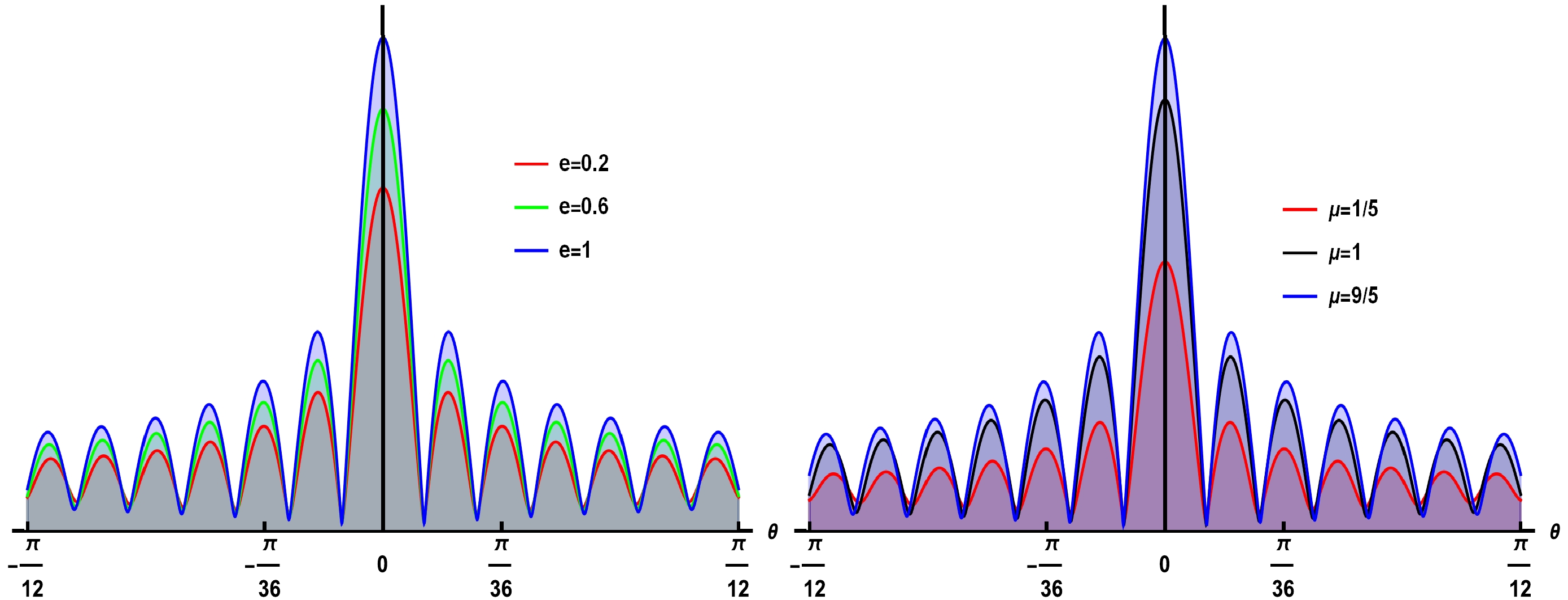

$\lambda=0.01,\; Q=v_{h}=0.5,\; \omega=80$ (left panel) and for different values of μ for$\lambda=0.01,\; v_{h}=0.5,\; \omega=80,\; e=1$ (right panel). Further, in the right panel, from top to bottom, the values of μ correspond to$Q=0.1,\; 0.5,\; 0.9$ , respectively. -
After analysis of the physical interpretation of the extracted response function
$ {\langle O\rangle} $ , we use it to directly interpret the image of the BH on the screen. As stated in [90, 91], to observe the extracted response function$ {\langle O\rangle} $ , we need to introduce a special optical system, which is composed of an extremely thin convex lens and the spherical system shown in Fig. 6. In the middle position, there is a convex lens, and we assume the lens is infinitely thin and the size of the lens is much smaller than the focal length f, which is regarded as a transform of the plane wave into the spherical waves. Imagine that, from the left side of Fig. 6, the incident wave is irradiated at the lens, and the wave converts to the transmitted wave at the focus, which is depicted on the screen; see the right side of Fig. 6. With the help of this apparatus, we analyze the visual appearance of the holographic Einstein ring image under suitable values of the model parameters, which may help us to deeply understand the actual astrophysical situation of space-time structure and its associated deeper phenomenological consequences.Let us define an observational point at (

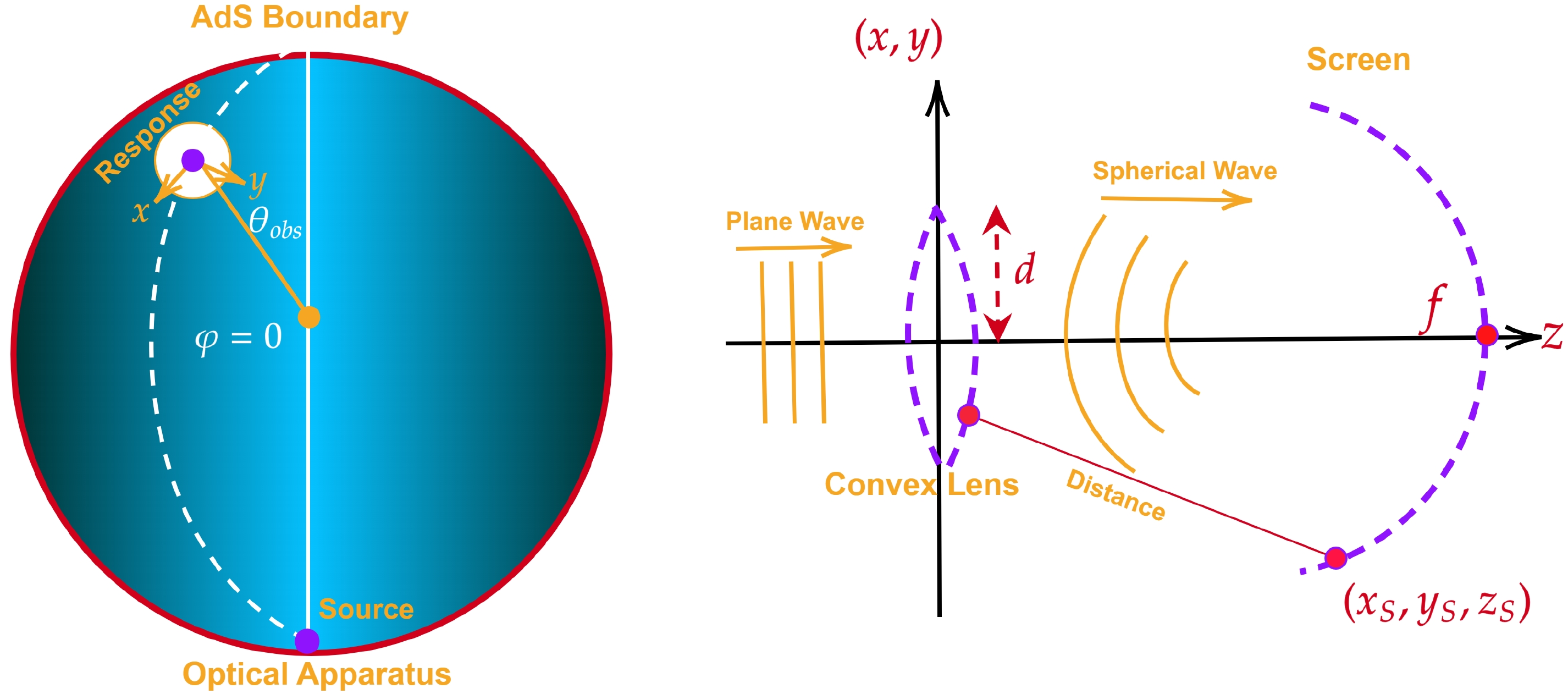

$ \theta, \varphi) = (\theta_{\text{obs}},\; 0 $ ) on the AdS boundary, where an observer is surrounded by a small white circle, as shown in the left side of Fig. 6. We introduce new polar coordinates as ($ \theta', \varphi' $ ) such that$ \sin\theta'\cos\varphi'+{\rm i} \cos\theta' = {\rm e}^{{\rm i}\theta_{\text{obs}}}(\sin\theta\cos\varphi+{\rm i}\cos\theta), $
(20) (
$ \theta' = 0,\; \varphi' = 0 $ ), which corresponds to the center of the observation region. For simplicity, we define Cartesian coordinates ($ x,y,z $ ) with$ (x,y) = (\theta'\cos\varphi',\; \theta'\sin\varphi') $ in the observation region. To develop an optical setup, in the middle position, we fix the convex lens on the ($ x,y $ )-plane. The focal length and radius of the convex lens are presented by f and d, respectively. Moreover, we adjust a spherical screen having coordinates as$ \vec{x}_{\mathrm{S}} = (x,y,z) = (x_{\mathrm{S}},y_{\mathrm{S}},z_{\mathrm{S}}) $ , satisfying$ x^{2}_{\mathrm{S}}+y^{2}_{\mathrm{S}}+z^{2}_{\mathrm{S}} = f^{2} $ [90, 91]. With the help of a convex lens, the incident wave$ \Psi_{\mathrm{in}}(\vec{x}) $ with frequency ω can be the transmitted in the following form:$ \Psi_{\mathrm{tr}}(\vec{x}) = {\rm e}^{-{\rm i}\omega\frac{|\vec{x}|^{2}}{2f}}\Psi_{\mathrm{in}}(\vec{x}), $
(21) where
$ \vec{x} = (x,y,0) $ is the coordinate position on the AdS boundary, where the convex lens is placed in the observation range. Then, this wave is considered as the spherical wave and will transform into the observed wave$ \Psi_{\mathrm{sc}}(\vec{x}_{\mathrm{s}}) $ when it is reached on the screen as$ \Psi_{\mathrm{sc}}(\vec{x}_{\mathrm{s}}) = \int_{|\vec{x}|\leq d}{\rm d}^{2}x\Psi_{\mathrm{tr}}(\vec{x}){\rm e}^{-{\rm i}\omega\varpi}, $
(22) where ϖ is the distance from the lens point
$ (x,y,0) $ to the spherical screen ($ x^{2}_{\mathrm{S}},\; y^{2}_{\mathrm{S}},\; z^{2}_{\mathrm{S}} $ ), which is defined as [91]$ \begin{aligned}[b] \varpi &= \sqrt{(x_\mathrm{S}-x)^2+(y_\mathrm{S}-y)^2+z_\mathrm{S}^2}\\ &= \sqrt{f^2-2\vec{x}_\mathrm{s}\cdot\vec{x}+|\vec{x}|^2} \simeq f-\frac{\vec{x}_\mathrm{s}\cdot\vec{x}}{f}+\frac{|\vec{x}|^2}{2f}, \end{aligned} $
(23) where
$ \vec{x}_\mathrm{s} = (x_\mathrm{s}, y_\mathrm{s}) $ . Now, considering the Fresnel approximation$ f\gg |\vec{x}| $ , we obtain$ \Psi_{\mathrm{sc}}(\vec{x}_{\mathrm{s}}) = \int {\rm d}^{2}x\Psi_{\mathrm{in}}(\vec{x})\Xi(\vec{x}){\rm e}^{-{\rm i}\frac{\omega}{f}\vec{x}.\vec{x}_{\mathrm{s}}}, $
(24) where
$ \Xi(\vec{x}) $ is the window function$ \Xi(\vec{x})\equiv \begin{cases} {1, \quad 0<|\vec{x}|\leq d}, \\ {0,\quad \; |\vec{x}|>d}. \end{cases} $
(25) Based on Eq. (24), we now plot the holographic Einstein ring image on the screen via Fourier transformation. In this way, one can illustrate how the wave source and space-time geometry affect the Einstein ring.
To understand this, we illustrate the density maps of the holographic Einstein ring images on the screen for different values of parameter λ and observational angles of the AdS boundary with
$ Q = v_{h} = 0.5,\; \omega = 80,\; e = 1 $ (see Fig. 7). From this figure, one can see that when$ \lambda = 0.01 $ and the distant observer is located at$\theta_{\rm obs} = 0^\circ$ , there is a bright ring with a series of concentric striped patterns in the image, which is shown in Fig. 7 (a). From Fig. 7 (a) to 7 (d), we observe that as the value of the observational angle is increased, the bright ring transforms into a luminosity-deformed ring, instead of a strict axisymmetric ring. In particular, when$\theta_{\rm obs} = 60^\circ$ (see Fig. 7 (c)), bright light arcs appear, rather than a bright ring, and further transform into bright light points when$\theta_{\rm obs} = 90^\circ$ , as shown in Fig. 7 (d). When we increase the parameter λ, such as$ \lambda = 0.06 $ , the same phenomena exist as for$\theta_{\rm obs} = 0^\circ$ . When$\theta_{\rm obs} = 30^\circ$ , we observe that two large light arcs appear, where the right arc is brighter compared to the left one (see Fig. 7 (f)). Further, when$\theta_{\rm obs} = 60^\circ$ , the large arcs are changed into small arcs and further converted into two light spots when$\theta_{\rm obs} = 90^{\circ}$ , as shown in Fig. 7 (g) and 7 (h), respectively. These findings are also consistent with [90, 91]. Next, when we fix$ \lambda = 0.11 $ and vary the positions of the distant observer (see Fig. 7 (i) to 7 (l)), we notice that the optical appearance of the ring behaves almost the same as we discussed in the previous case when$ \lambda = 0.06 $ . However, a significant difference is found in the radius of the ring gradually moving toward the center of the screen, which is more prominent in this case. When the strength of parameter λ further increases, i.e.,$ \lambda = 0.16 $ , we see the series of axisymmetric concentric rings at$\theta_{\rm obs} = 0^{\circ}$ , and these rings are closer to the center of the screen, as shown in Fig. 7 (m). When$\theta_{\rm obs} = 30^{\circ}$ , we see bright light arcs, and these arcs are changed into pairs of bright light points when$\theta_{\rm obs}$ changes from$\theta_{\rm obs} = 60^{\circ}$ to$\theta_{\rm obs} = 90^{\circ}$ . Further, from top to bottom, we note that as the value of the RG parameter λ increases, the overall brightness of the ring slightly increases, which is difficult to observe.Figure 7. (color online) Density maps of the lensed response on the screen at various observation angles under suitable values of λ with

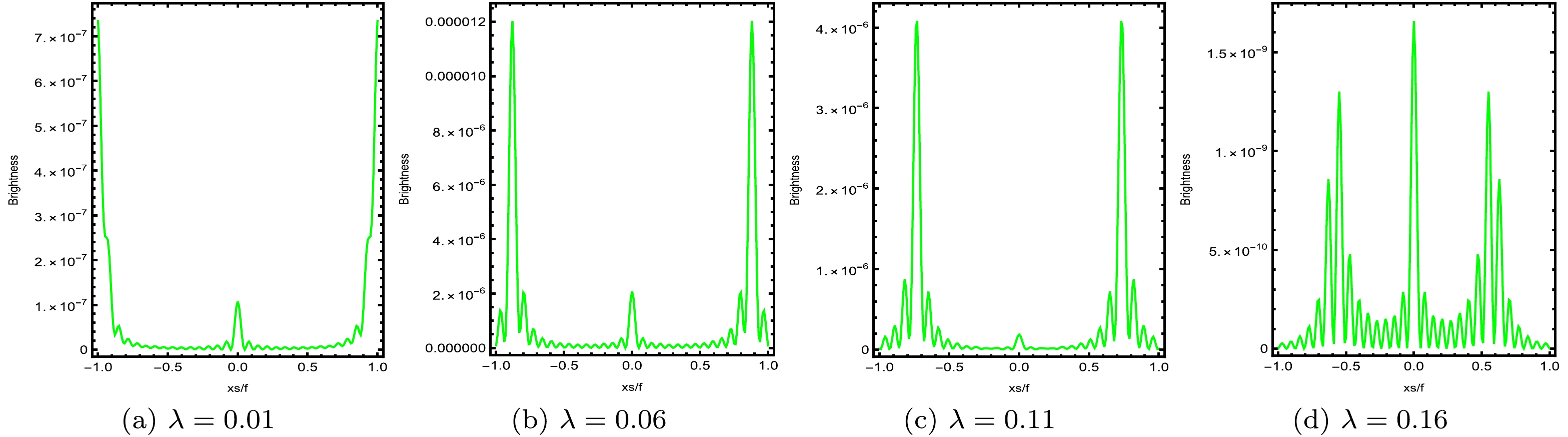

$Q=v_{h}=0.5,\;\omega=80,\;e=1$ .Moreover, as shown in Fig. 8, we further analyze the influence of the parameter λ on the brightness curves with fixed values of
$ Q = v_{h} = 0.5,\; \omega = 80 $ , and$ e = 1 $ . The x and$ -x $ intercepts correspond to the radius of rings, and the vertical axis shows the brightness of the lensed response on the screen. From Fig. 8 (a), when$ \lambda = 0.01 $ , it is observed that the peak curves lie close to the boundary, which means that the ring radius has maximum value, and the curves lie at the points$ -1 $ and$ 1 $ on the x-axis. When parameter λ grows, i.e.,$ \lambda = 0.06 $ , the peak curves gradually move toward the center and lie at the points$ -0.8 $ and$ 0.8 $ on the x-axis, meaning the ring’s radius decreases. However, the brightness of the lensed response slightly increases in this case (see the vertical axis of Fig. 8 (b)). Similarly, in Figs. 8 (c) and 8 (d), we see that the peak curves gradually move toward the center with increasing values of parameter λ. Moreover, a significant difference is found in Fig. 8 (d) as compared to previous cases, when$ \lambda = 0.16 $ ; in the middle of the screen, there is a peak curve, which shows the maximum value compared to boundary curves. This effect can also be seen in Fig. 7 (m), where the bright light spot in the center of the screen corresponds to the peak curve of Fig. 8 (d). All these results imply that increasing values of λ decrease the ring’s radius and slightly affect the brightness of the shadow.Figure 8. (color online) Changes in brightness of the lensed response on the screen for different values of λ at
$Q=v_{h}=0.5,~\omega=80,~e=1$ .Now, we discuss the influence of wave source on the holographic Einstein ring image, which is observed at the position of the north pole, i.e.,

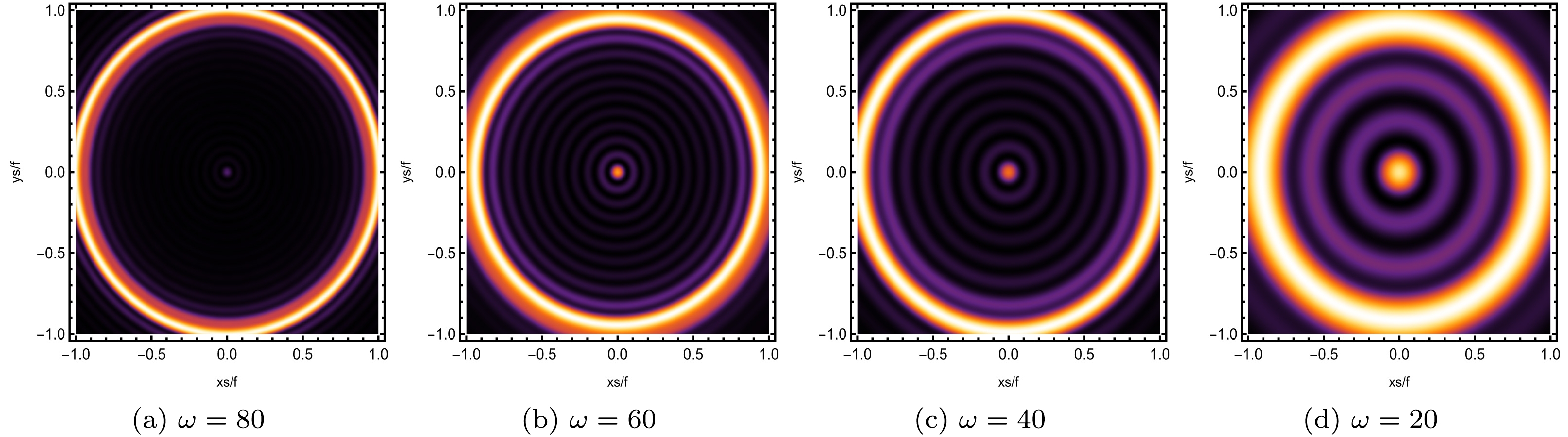

$\theta_{\text{obs}} = 0^{\circ}$ , as depicted in Fig. 9. We selected the values of parameters$\lambda = e = 0.01,\; Q = v_{h} = 0.5$ and plotted four different density maps according to some specific values of ω as an example. To analyze the effect of the wave source, we fix$ \eta = 0.05 $ and$ d = 0.6 $ for the convex lens and note that as the value of the frequency increases, the corresponding ring becomes sharper. Further, for a better understanding of the description of the wave source, we depict the corresponding profiles of the lensed response function in Fig. 10 under the same set of parameters as mentioned in Fig. 9. From this figure, we observe that decreasing values of frequency ω lead to enhancing the gap between the brightness curves as well as increasing the brightness. Based on these profiles, we concluded that the geometric optics approximation provides better configurations about the dual image of the BH in the high frequency limit.Figure 9. (color online) Density maps of the lensed response on the screen for different values of ω at the observation angle

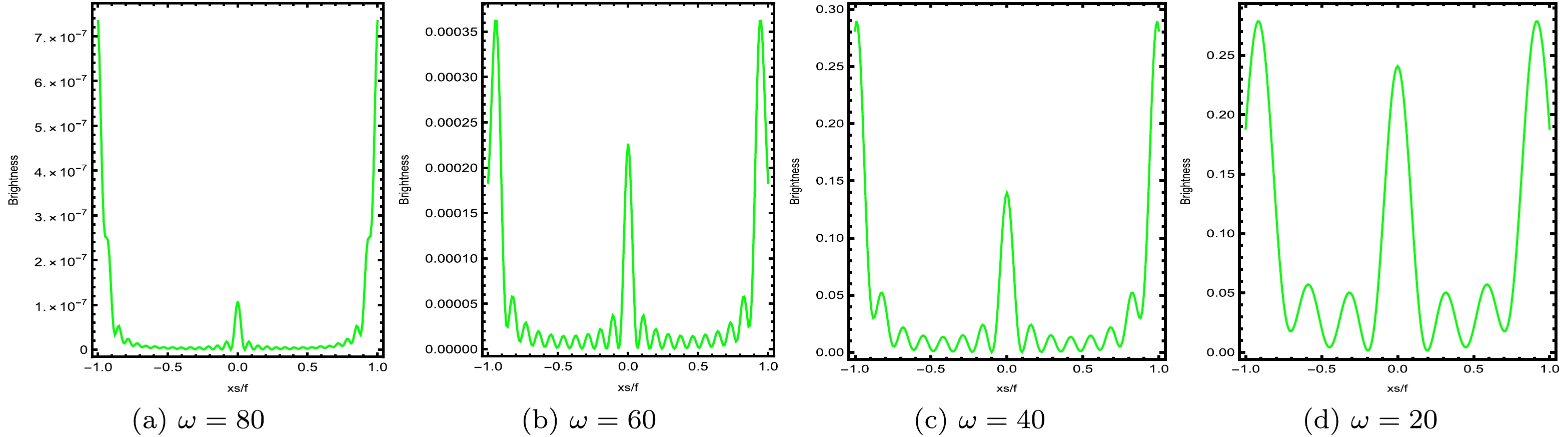

$\theta_{\text{obs}}=0^{o}$ with$\lambda=e=0.01,~Q=v_{h}=0.5$ .Figure 10. (color online) Changes in brightness of the lensed response on the screen for different values of ω with
$\lambda=e=0.01, $ $ Q=v_{h}=0.5$ .Now, we are interested in defining the possible effect of the horizon temperature T on the profiles of the lensed response function, as depicted in Fig. 11 at the observational angle
$\theta_{\text{obs}} = 0^{\circ}$ with a fixed value of chemical potential$ \mu = 1 $ and$ \lambda = e = 0.01,\; \omega = 80 $ . We obtained the values of temperature$ T = 0.0249,\; 0.0746,\; 0.1243,\; 0.174 $ corresponding to charges$ Q = 0.1,\; 0.3,\; 0.5,\; 0.7 $ , respectively. In particular, when$ T = 0.0249 $ , the corresponding ring lies close to the center. As the temperature T grows to$ T = 0.0746 $ , the resulting ring moves away from the center. Similarly, when the temperature further grows to$ T = 0.174 $ , the corresponding bright ring is further shifted toward the boundary of the screen (see Fig. 11 (d)). This effect can also be seen by going left-to-right on the sequence of images in Fig. 12, where the peak curves of the brightness are gradually shifted toward the boundary with increasing temperature T. Furthermore, when$T = 0.0249, 0.0746,\; 0.1243$ , we see fewer brightness curves in the center of the large curves (see Fig. 12), and corresponding to these curves, we see the bright light spot in the screen, as shown in Fig. 11. However, when$ T = 0.174 $ , we see a very dim light spot in the center of the screen, which is difficult to detect (see Fig. 11 (d)).Figure 11. (color online) Density maps of the lensed response on the screen for different values of T at the observation angle
$\theta_{\text{obs}}=0^{\circ}$ with a fixed value of chemical potential$\mu=1$ and$\lambda=e=0.01, ~\omega=80$ . From left to right, the values of temperature T correspond to$Q=0.1,~0.3,~0.5,~0.7$ , respectively.Figure 12. (color online) Changes in brightness of the lensed response on the screen for different T with a fixed value of chemical potential

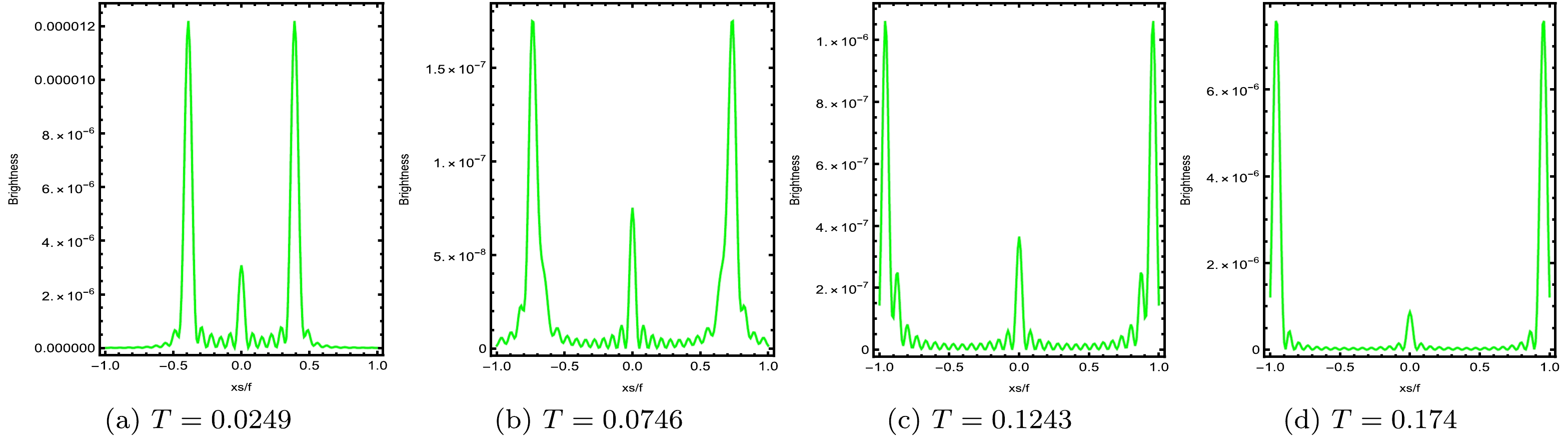

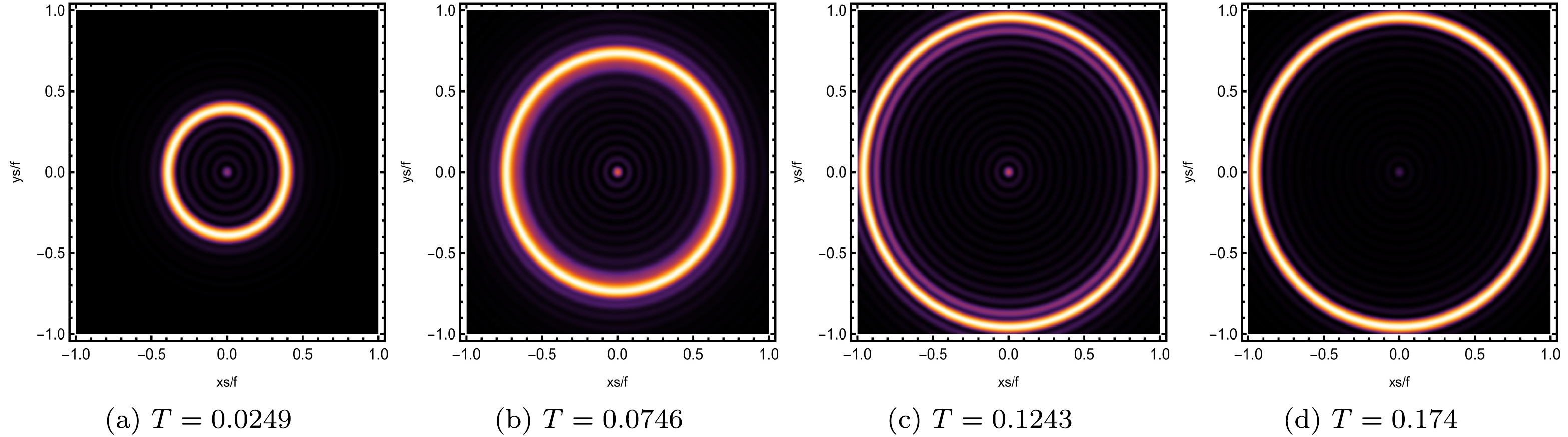

$\mu=1$ and$\lambda=e=0.01, ~\omega=80$ . From left to right, the values of temperature T correspond to$Q=0.1,~0.3,~0.5,~0.7$ , respectively.Consequently, we further observe the influence of chemical potential μ on the Einstein ring image of AdS BH at the observational angle
$\theta_{\text{obs}} = 0^{\circ}$ with a fixed value of temperature$ T = 0.45 $ and$ \lambda = e = 0.01, \; \omega = 80 $ , as shown in Fig. 13. From Fig. 13, we note that, when$ \mu = 0.05 $ and$ 0.35 $ , the radius of the Einstein ring does not change and lies almost at the same positions on the screen from the center, indicating that here, the effect of the chemical potential μ on the Einstein ring is negligible. However, as we increase the value of μ to$ \mu = 0.65 $ , as shown in Fig. 13(c), the position of the Einstein ring slightly varies and moves toward the center. However, when we fix$ \mu = 0.95 $ , we see that the position of the Einstein ring is dramatically changed and comes closer to the center of the screen sharply (see Fig. 13 (d)). These results are also depicted in Fig. 14, where we show the changes of the lensed response function on the screen under the same set of parameters mentioned in Fig. 13. We observe that the peaks of the curves are slightly changed from$ \mu = 0.05 $ to$ \mu = 0.95 $ , but the positions of the peak curves significantly move toward the center, particularly when$ \mu = 0.95 $ . In summary, we say that smaller values of chemical potential μ have a negligible contribution to changing the position of the bright ring, whereas large values of μ significantly affect it. From this perspective, we conclude that, under this framework, the increasing values of μ lead to decreasing the radius of the bright ring.Figure 13. (color online) Density maps of the lensed response on the screen for different values of chemical potential μ at the observational angle

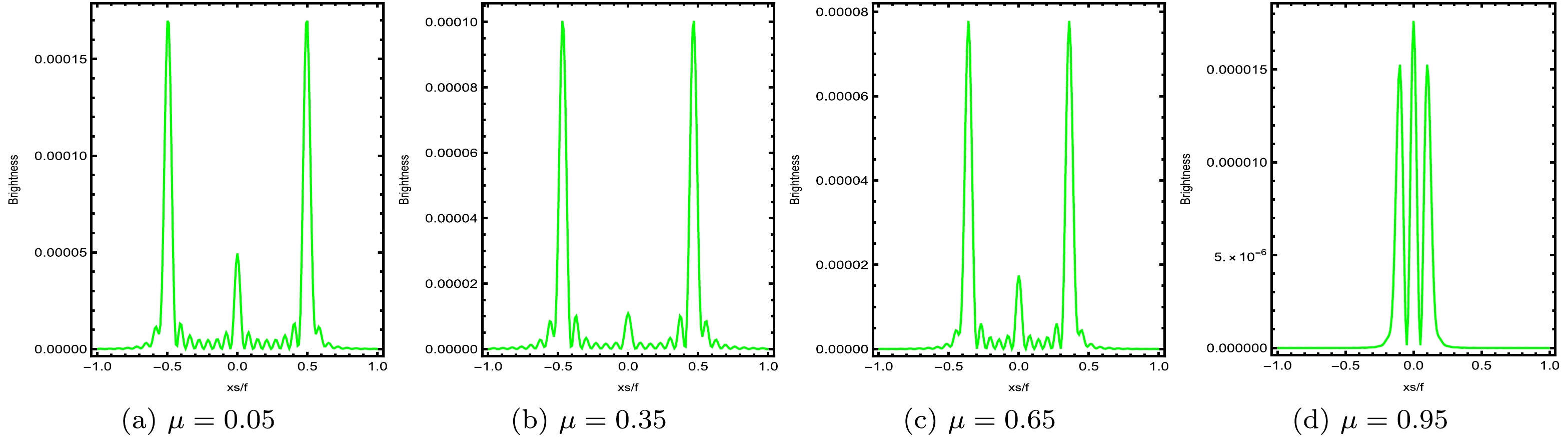

$\theta_{\text{obs}}=0^{\circ}$ with a fixed value of temperature$T=0.45$ and$\lambda=e=0.01, ~\omega=80$ . From left to right, the values of chemical potential μ correspond to$Q=0.0099,~0.0599,~0.0706,~0.0165$ , respectively.Figure 14. (color online) Changes in brightness of the lensed response on the screen for different values of chemical potential μ with a fixed value of temperature

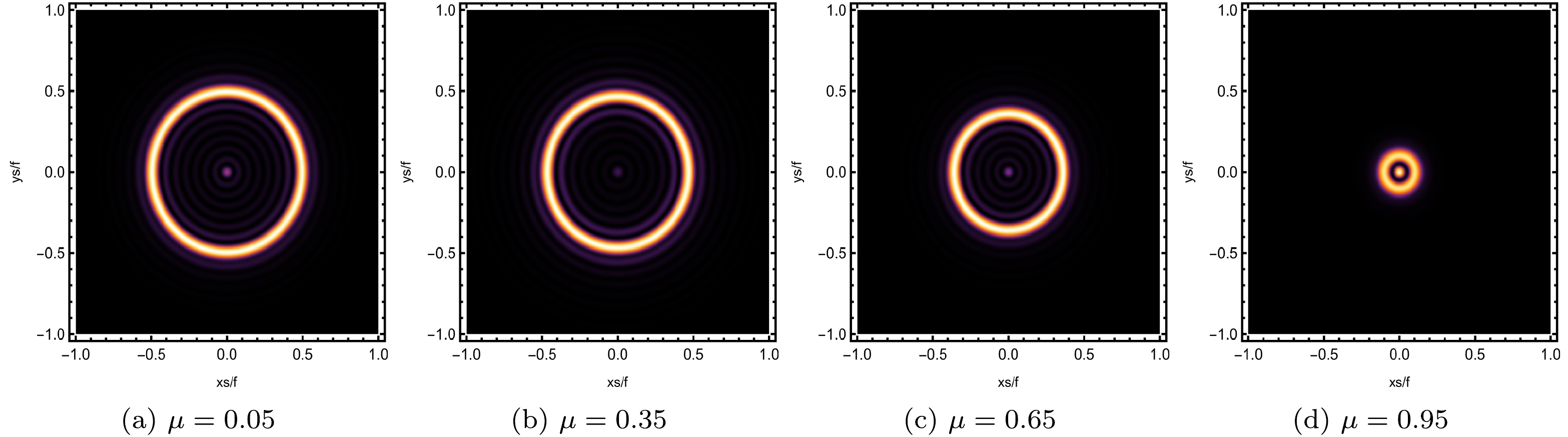

$T=0.45$ and$\lambda=e=0.01, ~\omega=80$ . From left to right, the values of chemical potential μ correspond to$Q=0.0099,~0.0599,~0.0706,~0.0165$ , respectively. -
In wave optics, we observe that at the position of the photon orbit, there is the brightest ring in the image. Now, we will analyze this brightest ring in the image through the optical geometry. Thus, to understand the motion of photons around the BH, we need to define the geodesic equations by considering the Hamilton-Jacobi formulation [106]. The dynamics of BH shadows are widely studied by the Lagrangian and Hamiltonian formalisms in the context of different MTG. The usual procedures give two conserved quantities such as energy E and angular momentum L along the axis of symmetry. Despite presenting the motivation for the Hamilton-Jacobi formulation, we require the Lagrangian for deriving the relation between the constants of motion. From this perspective, the motions of photons in the vicinity of a charged AdS BH are described by a Lagrangian formalism as
$ \begin{aligned}[b] {\cal{L}}& = \frac{1}{2}g_{\mu\nu}(\dot{x}^{\mu}-eg^{\mu \nu}A_{\nu})(\dot{x}^{\nu}-eg^{\mu \nu}A_{\mu}) \\ & = \frac{1}{2}\bigg[-f(r)\bigg(\dot{t}+\frac{eA_{t}}{f(r)}\bigg)^{2}+\frac{\dot{r}^{2}}{f(r)}+r^{2}(\dot{\theta}^{2}+\sin^{2}\theta \dot{\varphi}^{2})\bigg]. \end{aligned}$
(26) where
$ \dot{x}^{\mu} $ is the four-velocity of the photon, and ''.'' is the derivative with respect to the affine parameter σ along the geodesics. As we only consider the photons that move on the equatorial plane, we apply the initial conditions as$ \theta = \pi/2 $ and$ \dot{\theta} = 0 $ . Further, the Lagrangian is independent explicitly on time t and azimuthal angle ϕ; hence, one can obtain the expressions of two conserved quantities as$ E = \frac{\partial{\cal{L}}}{\partial\dot{t}} = f(r)\dot{t}+eA_{t},\quad L = \frac{\partial{\cal{L}}}{\partial\dot{\varphi}} = r^{2}\dot{\varphi}. $
(27) As Eq. (27) will be used in further calculations to analyze the motion of photons in a particular space-time through the corresponding geodesics equations, this equation will help in converting the system in terms of the conserved quantities. Now, in the background of the charged AdS BH, the Klein-Gordon equation is reduced to the following Hamilton-Jacobi equation [92, 107]:
$ \frac{1}{2}{\cal{M}}^{2} = -\frac{1}{2}g^{\mu\nu}\bigg(\frac{\partial{\cal{S}}}{\partial x^{\mu}}-eA_{\mu}\bigg)\bigg(\frac{\partial{\cal{S}}}{\partial x^{\nu}}-eA_{\nu}\bigg), $
(28) where
$ {\cal{S}} $ is the action. The Hamilton-Jacobi equation is separable, and it possesses a solution of the form$ {\cal{S}} = -Et+L\varphi+\int\frac{\sqrt{\widehat{R}(r)}}{f(r)}{\rm d} r, $
(29) where t denotes the time-like coordinate, φ parameterizes the orbits of the space-like Killing field, and
$ \widehat{R}(r) $ is defined as$ \widehat{R}(r) = (E-eA_{t})^{2}-f(r)\bigg(\frac{L^{2}}{r^{2}}-2\bigg). $
(30) The trajectory of geodesics can be further obtained by considering the partial derivatives of
$ {\cal{S}} $ with respect to t, φ, and r as$ \frac{\partial{\cal{S}}}{\partial t} = -E,\quad \frac{\partial{\cal{S}}}{\partial \varphi} = L, \quad \frac{\partial{\cal{S}}}{\partial r} = \frac{\sqrt{\widehat{R}(r)}}{f(r)}. $
(31) The ingoing angle
$\theta_{\rm in}$ of the light ray with the normal vector of boundary$ u^{b} = \frac{\partial}{\partial r^{b}} $ is defined as [91]$ \cos\theta_{\rm in} = \frac{g_{ab}v^{a}u^{b}}{|v| |u|}\bigg|_{r = \infty} = \sqrt{\frac{\dot{r}^{2}/f(r)}{\dot{r}^{2}/f(r)+L^{2}/r^{2}}}\bigg|_{r = \infty}, $
(32) where
$ v^{a} $ is the spatial component of$ 4 $ -velocity of the geodesic,$ g_{ab} $ is the induced metric on$ t = $ constant, and$ |v| $ and$ |u| $ are the norms of$ v^{a} $ and$ u^{b} $ with respect to$ g_{ab} $ , respectively. Moreover, Eq. (32) has the equivalent relation$ \sin\theta^{2}_{\rm in} = 1-\cos\theta^{2}_{\rm in} = \frac{L^{2}}{\widehat{E}^{2}}, $
(33) where
$ \widehat{E} $ is considered as the energy of a single particle. Hence, the incident angle$\theta_{\rm in}$ of the photon orbit, which comes from the infinite boundary, satisfies the following relation:$ \sin\theta_{\rm in} = \frac{L}{\widehat{E}}, $
(34) as depicted in Fig. 15. This relation is still applicable when the photon is located in the photon sphere. In this scenario, we denote the angular momentum as

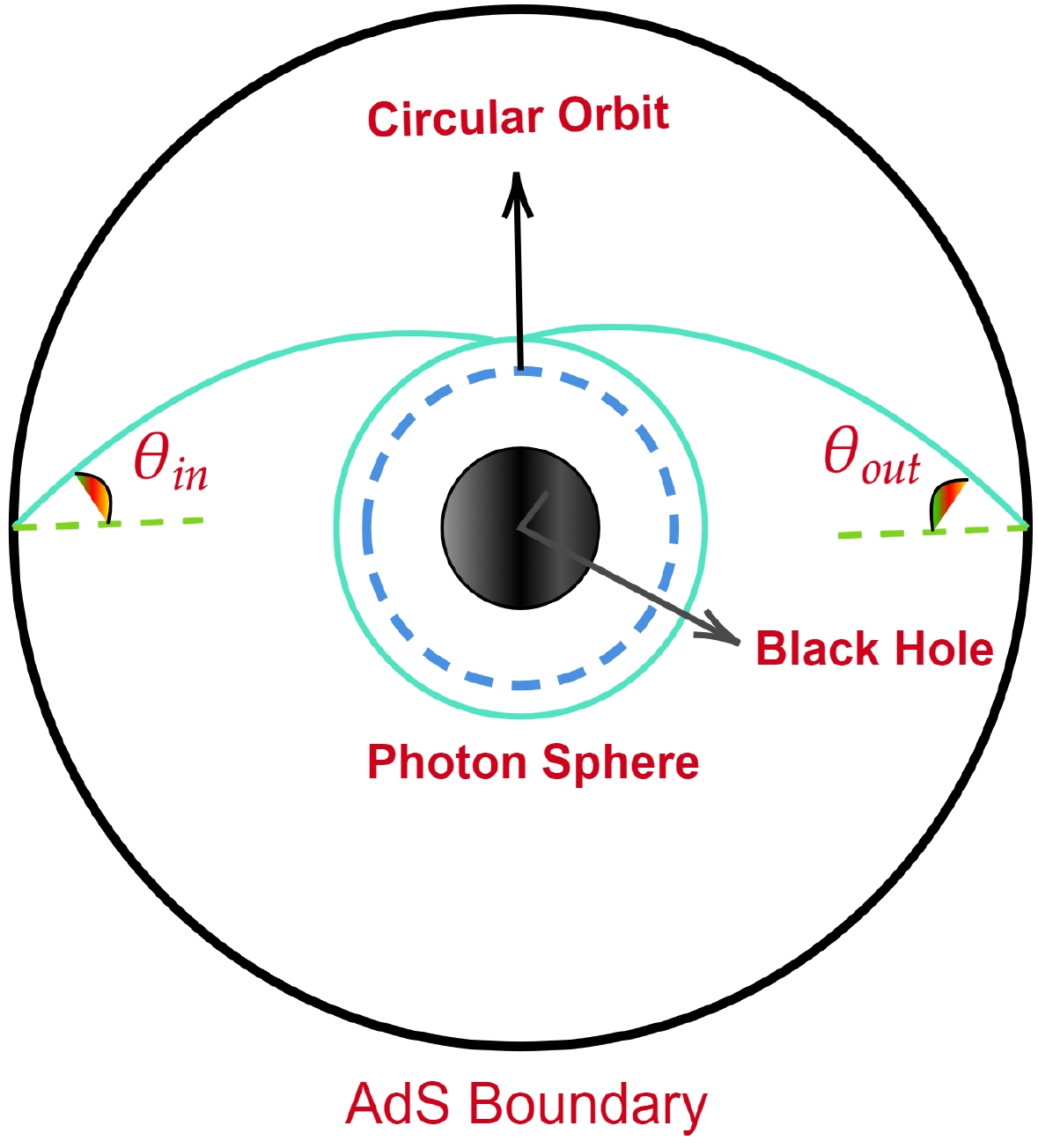

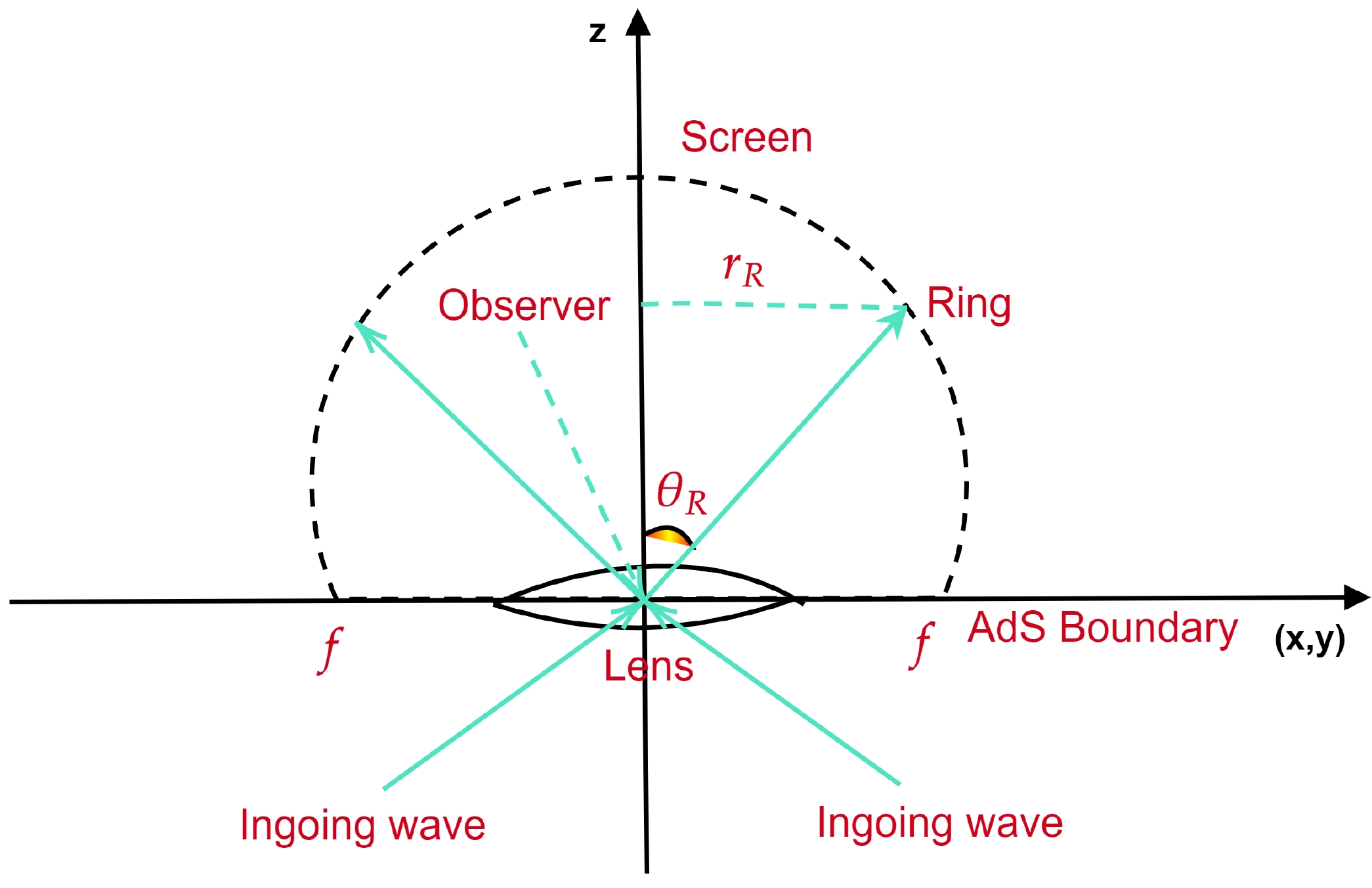

$ L_{\rho} $ , which is calculated asFigure 15. (color online) Schematic picture showing the particular ingoing and outgoing angles of the photon revolving around the BH once.
$ \widehat{R}(r) = 0,\quad\frac{{\rm d}\widehat{R}}{{\rm d}r} = 0. $
(35) In geometrical optics, when a distant observer near the AdS boundary looks up into AdS bulk, angle
$\theta_{\rm in}$ provides information about the angular distance of the image of the ray from the zenith. As there is axisymmetry when both endpoints of the geodesic and the center of the BH are coinciding, the observer will see a circular-shaped image with a radius equal to the incident angle$\theta_{\rm in}$ [90, 91]. Further, as presented in Fig. 16, one can calculate the angle of the Einstein ring, which is displayed on the screen with radius$ r_{R} $ as$ \sin\theta_{R} = \frac{r_{R}}{f}. $
(36) In addition, when the angular momentum is sufficiently large, such as
$\sin\theta_{\rm in} = \sin\theta_{R}$ , we have the following relation [91]:$ \frac{L_{\rho}}{\widehat{E}} = \frac{r_{R}}{f}. $
(37) The incident angle of the photon and angle of the photon ring illustrate the position at which any distant observer can see the clear picture of the photon ring. Next, we will numerically analyze the visual appearance of the corresponding results, which should be essentially equal. In Fig. 17, we show the radii of the BH horizon, location of the photon orbit, Einstein radius of the photon orbit, and Einstein ring radius in the unit of f as a function of BH horizon
$ r_{h} $ for different values of λ.Figure 17. (color online) Plots showing the BH horizon

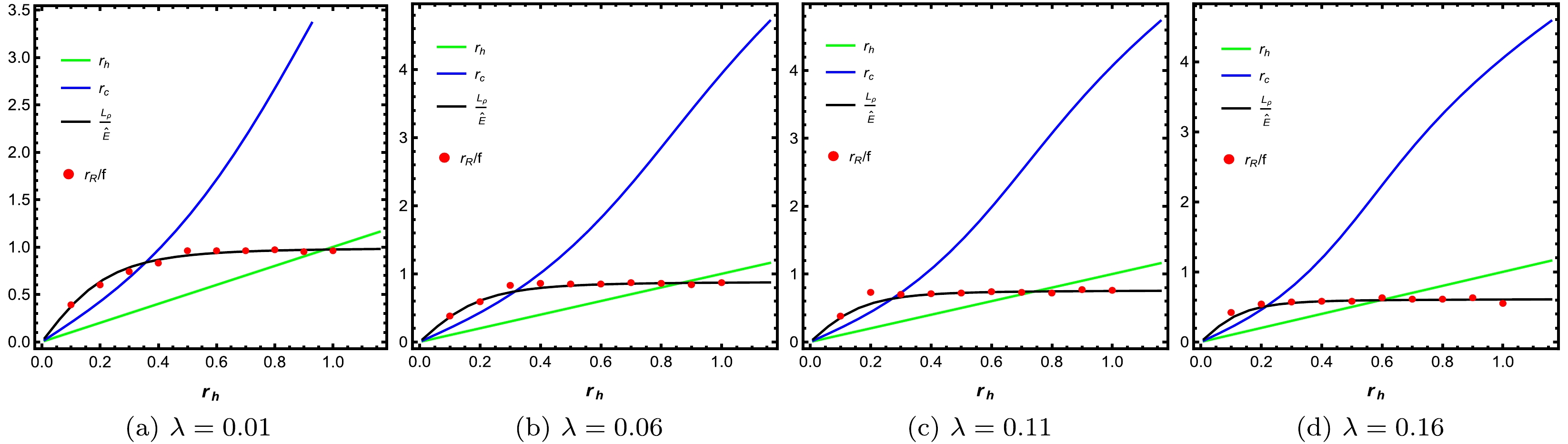

$r_{h}$ , location of photon orbit$r_{c}$ , Einstein radius of the photon orbit (black line), and Einstein ring radius obtained by wave optics (discrete red points) in the unit of f for different values of λ with fixed values of$\mu=1,~e=0.01$ , and$\omega=80$ .In Fig. 17 (a), when
$ \lambda = 0.01 $ , we see that the location of the photon ring continuously changes with increasing horizon$ r_{h} $ (see blue curve). Further, we see that the Einstein ring radius appreciably increases at lowervalues of the horizon$ r_{h} $ and then starts to flatten out with respect to the BH horizon$ r_{h} $ (see black curve of Fig. 17 (a)). Last, we see that the Einstein ring radius obtained by our holographic method fits well with geometric optics, as discrete red points always lie on the black curve or in its vicinity. Similarly, in Figs. 17 (b)−(d), the dependence of the radii of BH horizons$ r_{h} $ , the location of the photon orbit, and the Einstein ring radius obtained by both wave optics and geometric optics on the parameter λ are presented. In these graphs, we notice that, with increasing values of parameter λ, the radii of BH horizon$ r_{h} $ and location of the photon orbit$ r_{c} $ increase, and a behavior similar to that discussed for Fig. 17(a) is observed. However, a significant difference is also observed; as the values of parameter λ increase from left to right, the Einstein ring radius (black curve) slightly increases at smaller values of the BH horizon$ r_{h} $ and then starts to flatten out throughout the horizon$ r_{h} $ . This effect can be seen more clearly when$ \lambda = 0.16 $ , where the Einstein ring radius starts to flatten out at much smaller values of the horizon$ r_{h} $ compared to previous cases. Lastly, in all cases, the discrete red points, for the Einstein ring radius obtained by our holographic method, always lie on or near the black curve.For a comprehensive analysis, in Fig. 18, we further plot the trajectories of BH horizon radii

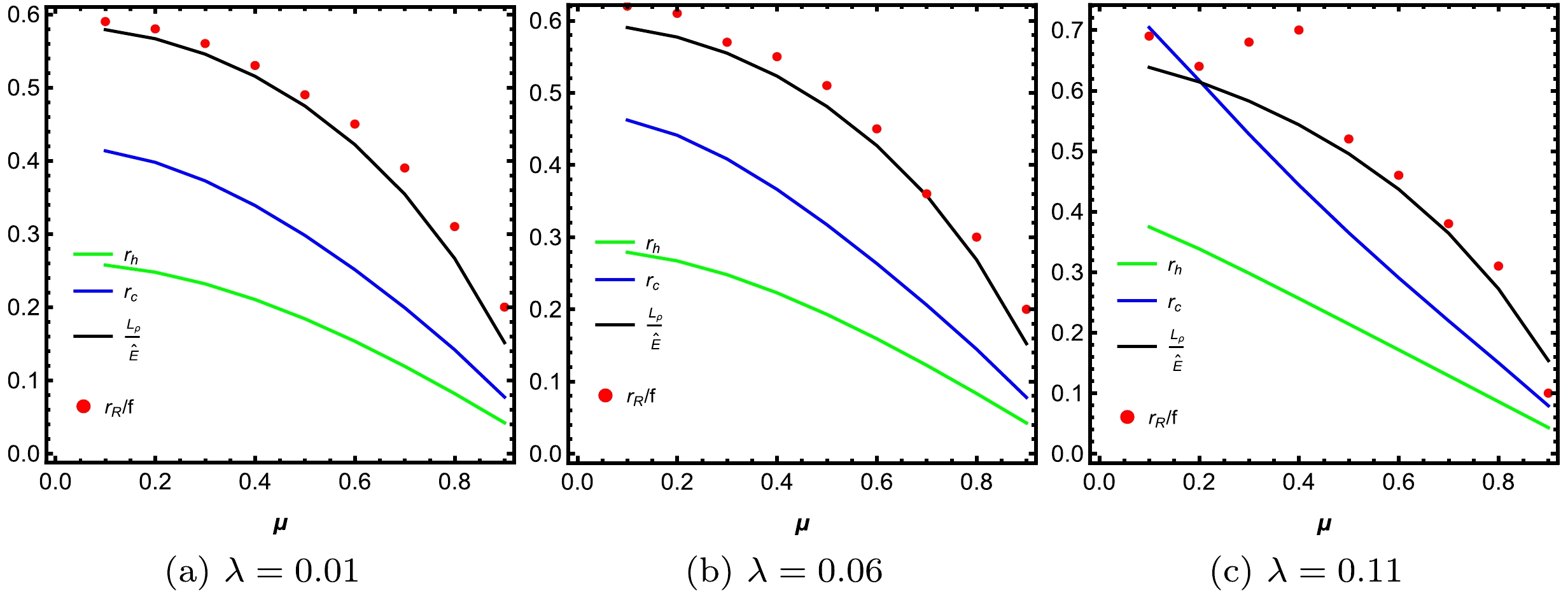

$ r_{h} $ , location of the photon orbit$ r_{c} $ , Einstein radius of the photon orbit (black curve), and Einstein ring radius in the unit of f (discrete red points) as a function of chemical potential μ for different values of λ. From Fig. 18(a), when μ has smaller values, the radii of the BH horizon show the maximum value and then drop sharply with increasing values of μ. Similarly, the location of the photon orbit and Einstein ring radius gradually change with respect to increasing values of μ. Moreover, the Einstein ring radius, which is obtained through the holographic method (see discrete red points), lies on or around the black curve, indicating that our results obtained by wave optics fit well with those by geometric optics. In Fig. 18 (b) and 18 (c), we observe that the radii of BH horizon and location of the photon orbit behave similarly, as defined in the previous case. However, it is observed that when$ \lambda = 0.06 $ , at smaller values of μ, the discrete red points are slightly shifted away from the black curve and exactly lie on the curve when$ \mu\sim0.7 $ and then slightly shifted away from the black curve. Similarly, when$ \lambda = 0.11 $ , this effect can be seen more clearly; for example, at initial values of μ, the discrete red points are significantly shifted away from the black curve, but when$ \mu\sim0.5 $ , these points closely lie on the black curve or its surroundings. Hence, in this case, when λ has smaller values, such as,$ \lambda\in[0.01,0.06] $ , the discrete red points lie close to the black curve. Finally, the credibility of the brightest holographic ring in the image obtained using wave optics is supported by its consistency with that predicted by geometric optics.Figure 18. (color online) Plots show the BH horizon
$r_{h}$ , location of photon orbit$r_{c}$ , Einstein radius of the photon orbit (black line), and Einstein ring radius obtained by wave optics (discrete red points) in the unit of f for different values of μ with fixed values of$T=0.37,~e=0.01$ , and$~\omega=80$ .
Holographic Einstein ring of a charged Rastall AdS black hole with bulk electromagnetic field
- Received Date: 2024-05-15
- Available Online: 2024-11-15
Abstract: We study the Einstein images of a charged Rastall AdS black hole (BH) within the fabric of AdS/CFT correspondence. Considering the holographic setup, we analyze the amplitude of the total response function for various values of model parameters. With an increase in parameter λ and temperature T, the amplitude of the response function decreases, while it increases with an increase in electric charge e and chemical potential μ. The influence of frequency ω also plays an important role in the bulk field, as it is found that decreasing ω leads to an increase in the periods of the waves, which means that the amplitude of the response function also depends on the wave source. The relation between T and the inverse of the horizon
